IR LEDS

Luminus Infrared LEDs range in power from a few hundred mW to 10-15W CW and are designed for a variety of applications such as Surveillance Systems, Iris and Face Recognition, Night Vision as well as Machine Vision, Medical and Scientific Instrumentation. Luminus IR Product Portfolio spans the entire Near Infrared (NIR) wavelength range from 730nm to almost 1,000nm, includes both SMT and Chip-On-Board packaging solutions and a choice of beam angle options providing the perfect IR LED solution for narrow beam, distance and flood applications.

Product Brief ecosystem WHERE TO BUY

APPLICATIONS

  • Surveillance Systems/CCTV
  • Iris and Face Recognition
  • License Plate Scanning
  • Automotive Sensing
  • Night Vision
  • Replacement of legacy 5mm IR LEDs for improved designs
  • Machine Vision
  • Inspection
  • Fiber-coupled Illumination
  • Medical and Scientific Instrumentation

FEATURES

  • Single and Dual Junction LEDs with high power density and uniform emission
  • Offered in multiple wavelengths from 730nm to 940nm and in multiple viewing angles from 40 degrees to 130 degrees (lens type)
  • High driven current density operation (up to 5A/mm2)
  • Multiple package configurations (3.45mm x 3.45mm SMT or large copper-coreboard packages)
  • Low Thermal Resistance
  • RoHS and REACh compliant

Benefits

  • Surface-Mount-Technology packages for cost-effective, compact high power IR LEDs
  • Integrated Chip-On-Board design for ease of system integration and optimum cooling for demanding high-power density applications
  • Ultra high radiant intensity (mW/sr) packaging solutions for IR systems requiring focused, long throw beams

PRODUCT SELECTOR GUIDE

Product Image Product Family Peak Wavelength Package Max.
Drive Current		 Optical Output Downloads Status

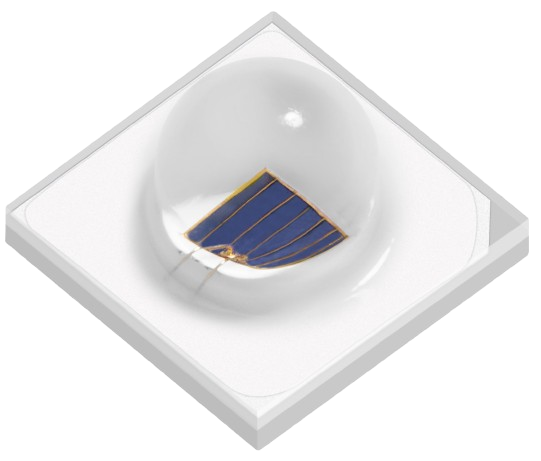

SST-05-IR 850 nm SMT
3.45 mm x 3.45 mm		 2 A (pulse) 295 mW (0.35A) Datasheet Active
800 mW (1.0A)
SST-10-IR 850 nm SMT
3.45 mm x 3.45 mm		 1.5 A (CW) 265 - 325 mW
(0.35 A)		 Datasheet Active
940 nm 205 - 265 mW
(0.35 A)
SST-06-IRD 810 nm SMT
3.45 mm x 3.45 mm		 2 A (pulse) 295 mW (0.35A) Datasheet Not recommended for new designs. Contact Luminus for details.
800 mW (1.0A)
SST-10-IRD 810 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 535 mW (0.35A) Datasheet Under EOL. Replace with SST-10-IRD-BxxH-810 nm.
1470 mW (1.0A)
SST-10-IRD-BxxH 810 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 535 mW (0.35A) Datasheet Active
1470 mW (1.0A)
SST-10-IRD 850 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 550 mW (0.35A) Datasheet Under EOL. Replace with SST-10-IRD-BxxH-850 nm.
1500 mW (1.0A)
SST-10-IRD-BxxH 850 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 580 mW (0.35A) Datasheet Active
1500 mW (1.0A)
SST-10-IRD 940 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 535 mW (0.35A) Datasheet Under EOL. Replace with SST-10-IRD-BxxH-940 nm.
1470 mW (1.0A)
SST-10-IRD-BxxH 940 nm SMT
3.45 mm x 3.45 mm		 5 A (pulse) 535 mW (0.35A) Datasheet Active
1470 mW (1.0A)
SST-10-FR Far Red (730 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 270 - 390 mW (0.35 A) Ecosystem
Datasheet 		Active
CBM-90-IRD 780 nm X33
28.00 mm x 26.75 mm
core board		 18 A (CW) 10 W
(13.5 A)		 Datasheet Active
CBM-90-IRD 860 nm X33
28.00 mm x 26.75 mm
core board		 18 A (CW) 13 W
(13.5 A)		 Datasheet Active
CBM-90-IRD 950 nm X33
28.00 mm x 26.75 mm
core board		 18 A (CW) 13 W
(13.5 A)		 Datasheet Active
CBM-120-FR 730 nm C15
28.00 mm x 26.75 mm
core board		 18 A (CW) 4.6 - 10.6 W
(13.5 A)		 Datasheet Active

DESIGN FILES

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
CBM-120-FR CBM-120-FR_Mech
(733.2 KB) 		CBM-120-FR_ASAP
(134.3 MB) 		CBM-120-FR_LT
(134.3 MB) 		CBM-120-FR_TP
(134.3 MB) 		CBM-120-FR_Zx
(134.3 MB)
CBM-90-IRD_(780nm) CBM-90-IRD_(780nm)_Mech
(462.6 KB) 		CBM-90-IRD_(780nm)_ASAP
(132.1 MB) 		CBM-90-IRD_(780nm)_LT
(139.2 MB) 		CBM-90-IRD_(780nm)_TP
(138.4 MB) 		CBM-90-IRD_(780nm)_Zx
(139.4 MB)
CBM-90-IRD_(850nm_940nm) CBM-90-IRD_(850nm_940nm)_Mech
(462.6 KB) 		CBM-90-IRD_(850nm_940nm)_ASAP
(132.1 MB) 		CBM-90-IRD_(850nm_940nm)_LT
(132.1 MB) 		CBM-90-IRD_(850nm_940nm)_TP
(132.1 MB) 		CBM-90-IRD_(850nm_940nm)_Zx
(132.1 MB)
SST-05-IR-B40 SST-05-IR-B40_Mech
(11.6 KB) 		SST-05-IR-B40_ASAP
(134.3 MB) 		SST-05-IR-B40_LT
(134.3 MB) 		SST-05-IR-B40_TP
(134.3 MB) 		SST-05-IR-B40_Zx
(134.3 MB)
SST-05-IR-B70 SST-05-IR-B70_Mech
(Contact Support) 		SST-05-IR-B70_ASAP
(134.4 MB) 		SST-05-IR-B70_LT
(134.4 MB) 		SST-05-IR-B70_TP
(134.4 MB) 		SST-05-IR-B70_Zx
(134.4 MB)
SST-06-IRD-B80 SST-06-IRD-B80_Mech
(Contact Support) 		SST-06-IRD-B80_ASAP
(134.7 MB) 		SST-06-IRD-B80_LT
(134.7 MB) 		SST-06-IRD-B80_TP
(134.7 MB) 		SST-06-IRD-B80_Zx
(134.7 MB)
SST-10-FR-B130 SST-10-FR-B130_Mech
(176.1 KB) 		SST-10-FR-B130_ASAP
(134.1 MB) 		SST-10-FR-B130_LT
(134 MB) 		SST-10-FR-B130_TP
(170 MB) 		SST-10-FR-B130_Zx
(134 MB)
SST-10-FR-B90 SST-10-FR-B90_Mech
(66.4 KB) 		SST-10-FR-B90_ASAP
(134.6 MB) 		SST-10-FR-B90_LT
(134.5 MB) 		SST-10-FR-B90_TP
(171.1 MB) 		SST-10-FR-B90_Zx
(134.5 MB)
SST-10-IR-B130 SST-10-IR-B130_Mech
(176.1 KB) 		SST-10-IR-B130_ASAP
(134.3 MB) 		SST-10-IR-B130_LT
(134.2 MB) 		SST-10-IR-B130_TP
(170.5 MB) 		SST-10-IR-B130_Zx
(134.2 MB)
SST-10-IR-B90 SST-10-IR-B90_Mech
(66.4 KB) 		SST-10-IR-B90_ASAP
(134.9 MB) 		SST-10-IR-B90_LT
(134.7 MB) 		SST-10-IR-B90_TP
(170.9 MB) 		SST-10-IR-B90_Zx
(134.7 MB)
SST-10-IRD-B130 SST-10-IRD-B130_Mech
(Contact Support) 		SST-10-IRD-B130_ASAP
(134.5 MB) 		SST-10-IRD-B130_LT
(134.5 MB) 		SST-10-IRD-B130_TP
(134.5 MB) 		SST-10-IRD-B130_Zx
(134.5 MB)
SST-10-IRD-B50 SST-10-IRD-B50_Mech
(Contact Support) 		SST-10-IRD-B50_ASAP
(134.6 MB) 		SST-10-IRD-B50_LT
(134.6 MB) 		SST-10-IRD-B50_TP
(134.6 MB) 		SST-10-IRD-B50_Zx
(134.6 MB)
SST-10-IRD-B90 SST-10-IRD-B90_Mech
(Contact Support) 		SST-10-IRD-B90_ASAP
(134.7 MB) 		SST-10-IRD-B90_LT
(134.7 MB) 		SST-10-IRD-B90_TP
(134.7 MB) 		SST-10-IRD-B90_Zx
(134.7 MB)

Documents

Related Documents for Download
Infrared Product Brief
