Luminus Specialty White LEDs range from 1W to over 100W operating power. Whether targeting high efficiency horticulture fixtures, or replacement of high power Xenon / HID lamps, they are ideal for directional applications and offer large operating dynamic range.

APPLICATIONS

  • Fiber Illumination:
    1. Medical Endoscopy
      Machine Vision
      Instrumentation
  • Stage Lighting Beams & Spots
  • Horticulture Lighting
  • Search Lights
  • Automotive after-market & tuning
  • Architectural Lighting
  • Beacons
  • Industrial applications

FEATURES

  • Product line ranging 1W to over 100W
  • Monolithic emitters for best directionality and artifact-free far field
  • Selection of surface mount and chip-on-metal PCB packages
  • Unlensed versions available for etendue-limited, hyper-directional applications
  • Large operating dynamic range
  • Select devices available with high CRI option

Benefits

  • Ideal Solid-State Light source for Xenon lamp replacement up 300W (CBT/CFT series)
  • High Brightness Stage color point CFT series allow migration from HID to Solid State for small, narrow beam spotlights
  • High brightness monolithic design with no encapsulation ideal for long-throw applications and fiber coupling.
  • Integrated Chip-On-Board design for ease of system integration and optimum cooling (CBT/CFT series)
  • SST-20/40 series : dynamic range up to 60% higher than comparable industry standard LEDs simplifies upgrade of existing designs

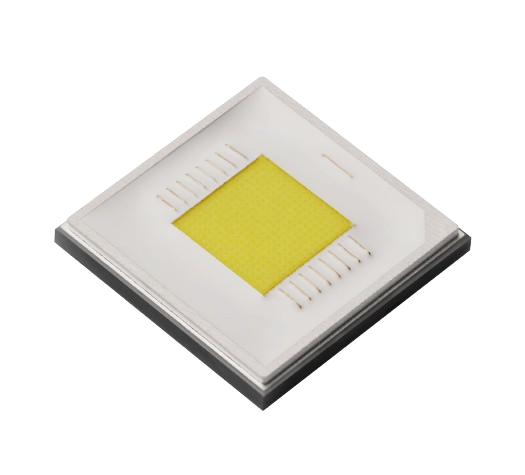

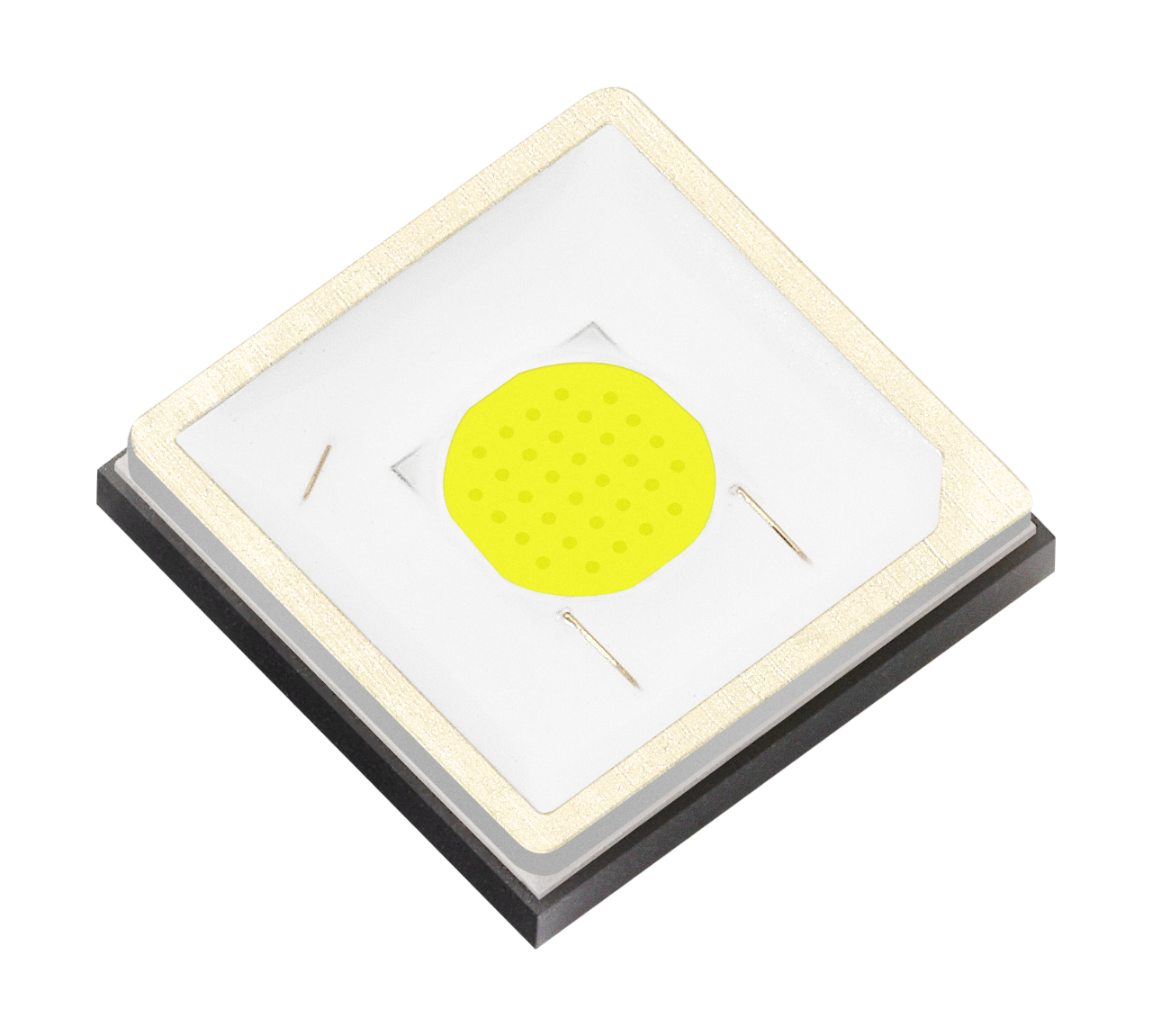

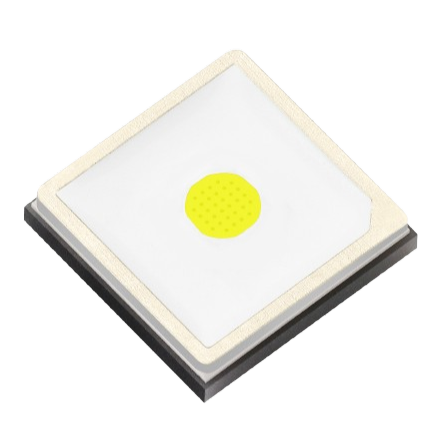

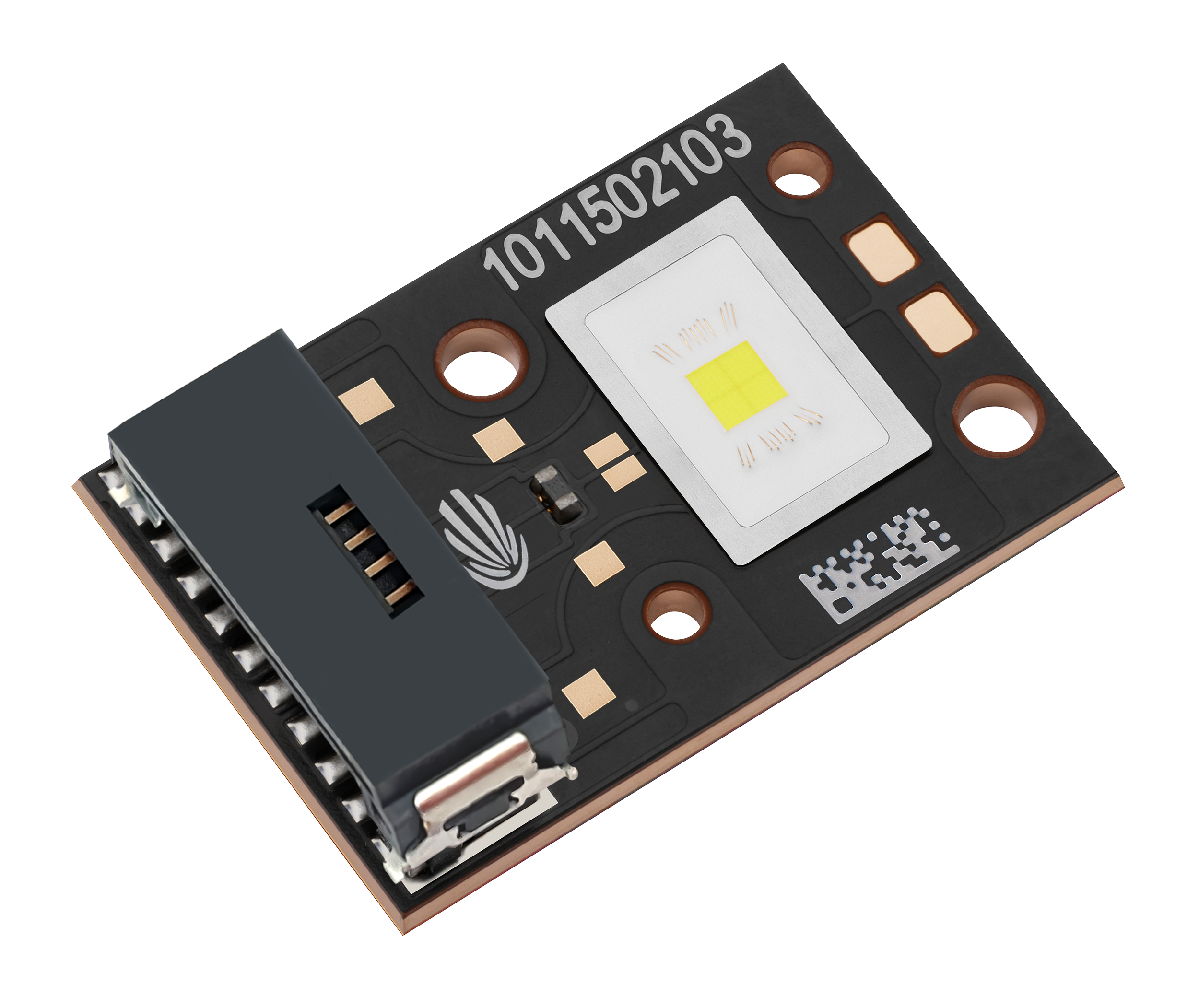

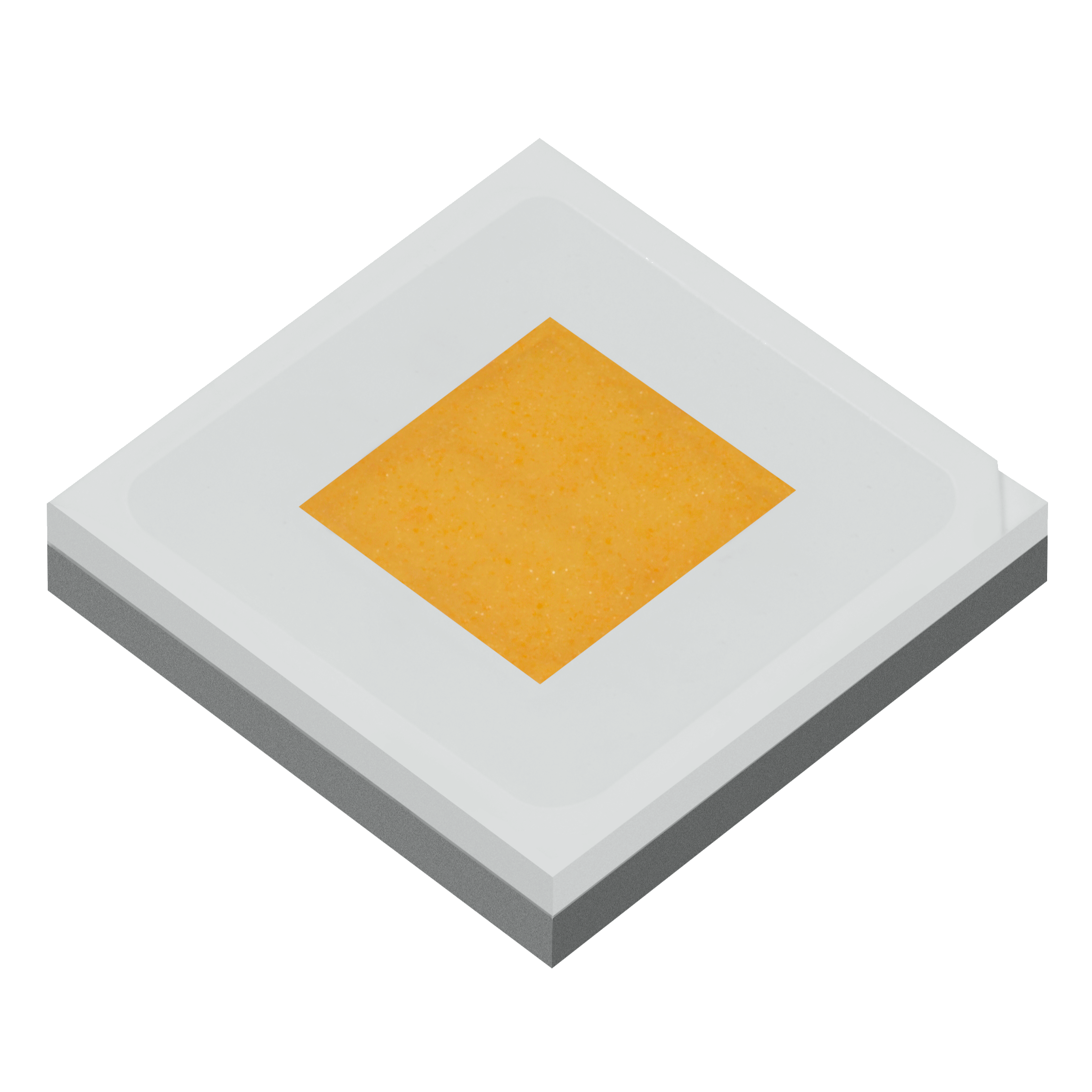

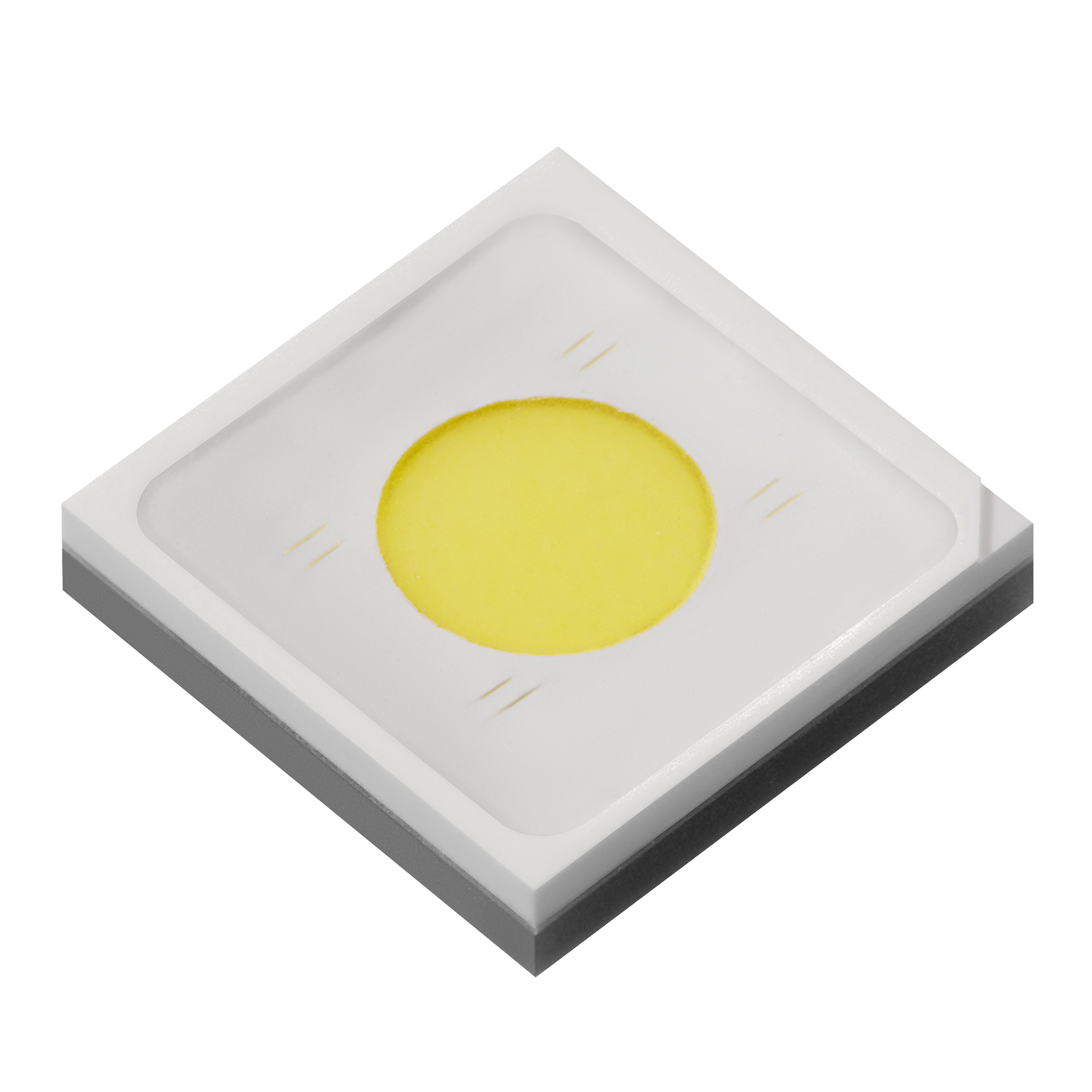

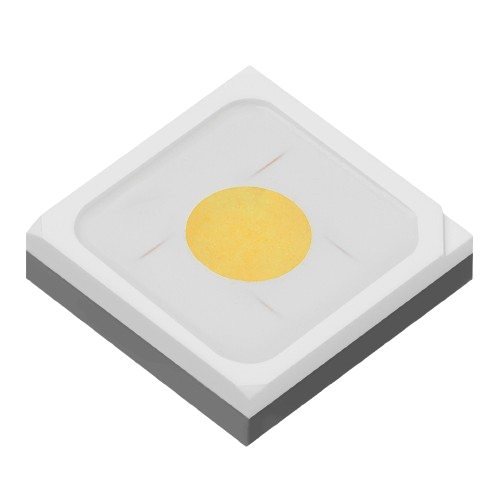

PRODUCT SELECTOR GUIDE

Product Image Product Family Color Package Max Drive
Current
Optical Output Links Status

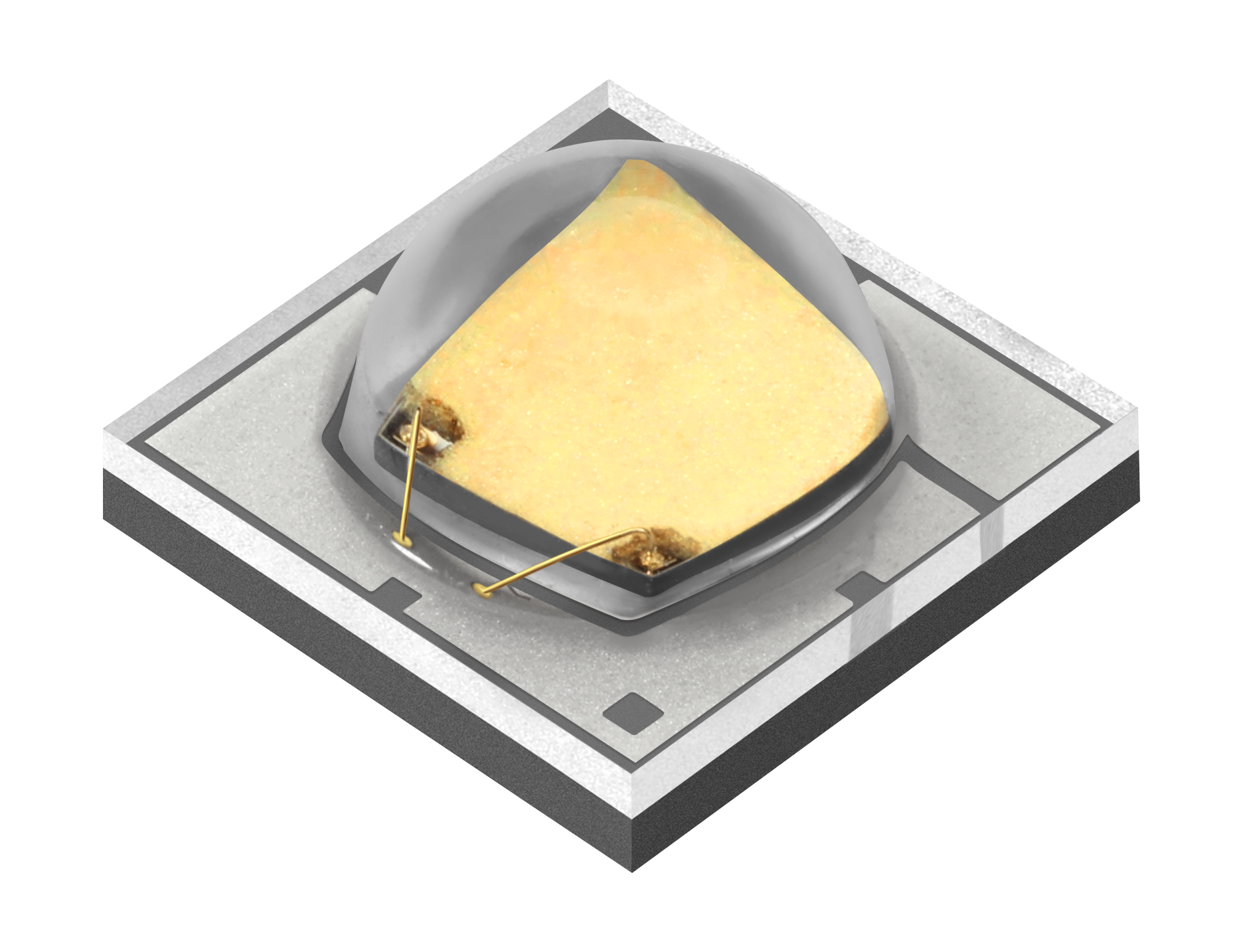

SST-20-WxS SST-20-WxS 5000 – 6500 K White,
Standard CRI
SMT
3.45 mm x 3.45 mm
3 A 900 - 1100 lm (3 A) Ecosystem
Datasheet
Active

SST-20-W Specialty White LEDs

The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red.

Features

  • High Power White LED series in 3535 ceramic surface mount package
  • Available in 5000K, 5700K and 6500K, 70 CRI typical with maximum output in excess of 900 lm at 3A
  • Specified and binned at 85 °C
  • Cool White typical efficacy of 180 lm/W at 350 mA, 85°C junction temperature
  • Maximum drive current: 3 A DC
  • Compact monolithic emitter ideal for directional lighting applications with high uniformity
  • 120° viewing angle
  • Available with 2 industry standard soldering footprint configurations
  • High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W
  • 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001
  • Electrically isolated thermal path

APPLICATIONS

  • Horticulture grow lights
  • Automotive after-market and tuning: light bars, spotlight, headlights
  • Bicycle lights
  • Battery and solar-powered lighting
  • Industrial Lighting
SST-20-WxH SST-20-WxH 2700 – 4000 K White,
95 CRI
SMT
3.45 mm x 3.45 mm
2 A 155 – 320 lm (700 mA) Ecosystem
Datasheet
Active

SST-20-W Specialty White LEDs

The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red.

Features

  • High Power White LED series in 3535 ceramic surface mount package
  • High CRI series: 2700K, 3000K, 3500K with 95 CRI min. and 4000K with 90 CRI min
  • Specified and binned at 85 °C
  • Cool White Typical efficacy > 170 lm/W at 350 mA, 85°C junction temperature
  • Maximum drive current: 3 A DC
  • Compact monolithic emitter ideal for directional lighting applications with high uniformity
  • 120° viewing angle
  • Available with 2 industry standard soldering footprint configurations
  • High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W
  • 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001
  • Electrically isolated thermal path

APPLICATIONS

  • Horticulture grow lights
  • Spot / tracklight
  • Stage / Studio Lighting
SST-40-W SST-40-W 6500 K White,
Standard CRI
5050 ceramic 6 A 1,400 - 1,900 lm (5 A) Datasheet Active

SST-40-W Specialty White LEDs

The SST-40-W series are high brightness cool white LED for applications up to 15W. Their monolithic emitted is perfect for directional specialty applications requiring a combination of high efficacy and high lumen output.

features

  • High Power Cool White LED with a monolithic emitter ideal for directional applications
  • Up to 1,800 lm at 5A DC operation
  • 6500K, 70 CRI typical
  • Specified hot at 85ºC junction temperature condition
  • High thermal conductivity package with thermal resistance of only 2.5 C/W junction to case
  • 120º viewing angle

APPLICATIONS

  • Battery and solar-powered applications
  • Automotive after-market and tuning spotlights
  • Instrumentation
  • Work Lights
SST-90-W SST-70X 6500 K White,
Standard CRI
5050 ceramic 5.25A (@6V) 2500 – 3500 lm (5.25 A) Datasheet Active

SST-70X-W Specialty White LEDs

The SST-70X-W series are high brightness cool white LED for applications up to 15W. Their monolithic emitted is perfect for directional specialty applications requiring a combination of high efficacy and high lumen output.

features

  • High Power Cool White LED with a monolithic emitter ideal for directional applications
  • Up to 3.200 lm at 5.25A DC operation
  • 6500K, 70 CRI typical
  • Specified hot at 85ºC junction temperature condition
  • High thermal conductivity package with thermal resistance of only 0.6 C/W junction to case
  • 120º viewing angle

applications

  • Flashlight
  • Spot lights
  • Work Lights
  • Battery and solar-powered applications
  • Automotive after-market and tuning spotlights
SST-90-W SST-90-W 5700 - 6500 K White,
Standard CRI
10 mm x 11 mm
SMT
18 A 3,400 to 4,500 lm (18 A) Datasheet Under EOL. Contact Luminus for alternate options

SST-90-W Specialty White LEDs

The SST-90 White LEDs can operate at up to 60W. They are targeted towards the most demanding specialty applications where high directionality and uniformity are critical.

features

  • Extremely high optical output Specialty White LED: up to 4,400lm at 18A
  • 5700K Daylight and 6500K Cool White color points available.
  • Large, monolithic chip with uniform emitting area ideal for directional, long throw applications
  • High thermal conductivity package - junction to case thermal resistance of only 0.5 °C/W
  • Large dynamic range: less than 1 A through 18 A DC.
  • Compact 10 x 11 mm2 isolated surface mount package

applications

  • Machine vision
  • High- output strobing applications
  • Beacons, obstruction Lighting
  • Medical Instrumentation
  • Long-throw automotive after-market /tuning spotlights
  • Search Lights
SBT-90-W SBT-90-W 5700 K White,
Standard CRI
10 mm x 11 mm
SMT
13.5 A 2,100 - 3,200 lm
(13.5 A)
Ecosystem
Binning and Labeling
Datasheet
5700K: Active
6500K: EOL

SBT-90-W Specialty White LEDs

The SBT-90 White LEDs can operate at up to 50W. Emitting into air with a low-profile window, they are specifically targeted to fiber illumination and light-engines where optical control is critical.

features

  • Large, monolithic chip with uniform emitting area of 9 mm2
  • Extremely high optical output: Up to 3,200 lumens at 13.5A DC from a single chip
  • Unencapsulated die ideal for optical coupling in etendue-limited applications
  • Choice of 5700K or 6500K color points
  • High thermal conductivity package - junction to case thermal resistance of only 0.5 °C/W
  • Compact 10 x 11 mm2 isolated surface mount package

Applications

  • Fiber-coupled illumination: endoscopy, machine vision, instrumentation
  • Architectural and Entertainment Lighting - Narrow beam spotlights
  • Beacons
  • Search lights
  • Automotive after-market/Tuning spotlights
SBT-90-W SBT-90-W Gen2 5700 - 6000 K White,
Standard CRI
10 mm x 11 mm
SMT
13.5 A 3,100 - 4,000 lm
(13.5 A)
Ecosystem
Datasheet
Active

SBT-90-W Specialty White LEDs

The SBT-90 White LEDs can operate at up to 50W. Emitting into air with a low-profile window, they are specifically targeted to fiber illumination and light-engines where optical control is critical.

features

  • Large, monolithic chip with uniform emitting area of 9 mm2
  • Extremely high optical output: Up to 3,200 lumens at 13.5A DC from a single chip
  • Unencapsulated die ideal for optical coupling in etendue-limited applications
  • Choice of 5700K or 6500K color points
  • High thermal conductivity package - junction to case thermal resistance of only 0.5 °C/W
  • Compact 10 x 11 mm2 isolated surface mount package

Applications

  • Fiber-coupled illumination: endoscopy, machine vision, instrumentation
  • Architectural and Entertainment Lighting - Narrow beam spotlights
  • Beacons
  • Search lights
  • Automotive after-market/Tuning spotlights
CBT-90-W CBT-90-W 5700 - 6500 K White,
Standard CRI
28 mm x 27 mm
Copper Core Board
18 A 2,500 - 3,600 lm
(18 A)
Ecosystem
Binning and Labeling
Datasheet
Active
5700 K, 90 CRI Not Recommended For New Designs

CBT-90-W Specialty White LEDs

The CBT-90 White LEDs are packaged in a high performance module for easy assembly and may operate at up to 65W. They are ideal solid-state light sources to replace high performance lamps including Xenon and HID in a range of medical and industrial applications.

features

  • Large, monolithic chip with uniform emitting area of 9 mm2
  • Integrated COB module ready for opto-mechanical assembly in host fixture
  • High thermal conductivity package - junction to case thermal resistance of only
  • 0.8°C/W
  • Extremely high optical output: up to 3,600 White Lumens at 18A DC
  • Available in 5700K and 6500K Color points (typ)
  • 92 CRI version available
  • Unencapsulated die with low profile protective window optimizes optical coupling in etendue-limited applications

Applications

  • Replacement of high power Xenon and HID lamps
  • Fiber-coupled illumination: medical endoscopy, machine vision, instrumentation
  • Architectural and Entertainment Lighting - Narrow beam spotlights
  • Beacons
  • Search lights
  • Automotive after-market/Tuning spotlights
CFT-90-W CFT-90-WxS 5700 - 8000 K,
Standard CRI
28 mm x 27 mm
Copper Core Board
27 A 3,700 - 5,600 lm
(22.5 A)
Ecosystem
Datasheet
Active

CFT-90-WxS Specialty White LEDs

The CFT-90 White LEDs are integrated module that can be operated up to 100W. Its compact monolithic source size, windowless interface and extremely high brightness make in an ideal Xenon/HID lamp replacement in a large range of spotlights and fiber-illuminated systems.

features

  • High performance specialty white LED with 9 mm2 un-lensed monolithic square emission area
  • Outputs Up to 6,000 lm at maximum drive condition
  • Reliable operation at up to 27 A DC with excellent brightness maintenance
  • Available in multiple color temperatures:
        5600K Daylight (WDS)
        6500K Cool White (WCS)
        7800K Stage White (WSS)
  • Integrated COB module ready for opto-mechanical assembly in host fixture
  • Window-less interface allows highly efficient coupling into fibers as well as optical engines
  • Industry-leading thermal resistance: 0.45 C/W
  • Largely mechanically compatible with Luminus CBT-90 and CBT-140 series
  • Specified and binned hot (Tj = 90 ˚C) near nominal application condition (22.5 A)

Applications

  • Replacement of 300W or higher XENON lamps in fiber illumination applications: endoscopy, machine vision, instrumentation and more
  • Replacement in HID lamps in Stage Lighting Beam and Spotlights (7800K WSS Stage color point)
  • Off-road vehicles / truck long range projector lights
  • Search lights
  • Inspection and industrial applications
  • Architectural lighting
  • Beacons
  • Off-road vehicles / truck long range projector lights
CFT-90-W CFT-90-WDH 6000 K 92 CRI 28 mm x 27 mm
Copper Core Board
27 A 2,600 – 3,700 lm
(22.5 A)
Ecosystem
Datasheet
Active

CFT-90-WDH Specialty White LEDs

The CFT-90-WDH High CRI White LED is an integrated product that can be operated up to 100Wof input power. Its compact monolithic source size, windowless interface and extremely high intensity make in an ideal Xenon/HID lamp replacement in a large range of spotlights and fiber-illuminated systems where a high color rendering is required.

features

  • High performance specialty white LED with 9 mm2 un-lensed monolithic square emission area
  • 6000K typical CCT with a typical CRI of 92, ideal for direct view medical and life sciences applications.
  • Outputs typically over 3,300 lm at maximum drive condition
  • Reliable operation at up to 27 A DC with excellent brightness maintenance
  • Integrated COB package ready for opto-mechanical assembly in host system with integrated alignment features
  • Window-less interface allows highly efficient coupling into fibers as well as optical engines
  • Industry-leading thermal resistance: 0.45 C/W
  • Largely mechanically compatible with Luminus CBT-90 and CBT-140 series
  • Specified and binned hot (Tj = 90 ˚C) near nominal application condition (22.5 A)

Applications

  • Replacement of 300W or higher XENON lamps in fiber illumination applications: endoscopy, machine vision, instrumentation and more
  • Replacement in HID lamps in high CRI Stage Lighting Beam and Spotlights
  • Inspection and industrial applications
CBT-140-W CBT-140-W 6500 K standard CRI 28 mm x 27 mm
Copper Core Board
28 A 3,400 - 4,800 lm (21 A - 70 CRI) Ecosystem
Binning and Labeling
Datasheet
Active
5600 K, 92 CRI 2,260 - 2,780 lm (21 A, 92 CRI)

CBT-140-W Specialty White LEDs

The CBT-140 White high power LEDs feature a unique monolithic round emitter and may operate at up to 100W. They are ideal solid-state light sources to replace high performance lamps including Xenon and HID in a range of medical and industrial applications

features

  • Extremely high optical output from a 14 mm2 circular source: Up to 4,800 white lumens
  • Round emitting aperture provides efficient match to circular optical systems and narrow beam spotlights
  • Unencapsulated package preserves small etendue facilitating narrow beam optical system design
  • Integrated COB module ready for opto-mechanical assembly in host fixture
  • Integrated thermistor enables consistent temperature monitoring during operation for high system reliability
  • High thermal conductivity package - junction to heat sink thermal resistance less than 0.25°C/W
  • Large dynamic range: 1 A to 28A
  • High CRI (92 typical) Daylight color temperature available

Applications

  • Replacement of XENON lamps in fiber illumination applications: endoscopy, machine vision, instrumentation and more
  • Replacement in HID lamps in Stage Lighting Beam and Spotlights
  • Off-road vehicles / truck long range projector lights
  • Search lights
  • Inspection and industrial applications
  • Architectural lighting
  • Beacons

DESIGN FILES

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
CBT-140-W CBT-140-W_Mech
(958.9 KB)
CBT-140-W_ASAP
(134.4 MB)
CBT-140-W_LT
(178.8 MB)
CBT-140-W_TP
(140.2 MB)
CBT-140-W_Zx
(146.1 MB)
CBT-90-W CBT-90-W_Mech
(1.6 MB)
CBT-90-W_ASAP
(133.9 MB)
CBT-90-W_LT
(133.9 MB)
CBT-90-W_TP
(133.9 MB)
CBT-90-W_Zx
(133.9 MB)
CFT-90-W CFT-90-W_Mech
(783.0 KB)
CFT-90-W_ASAP
(135.0 MB)
CFT-90-W_LT
(277.5 MB)
CFT-90-W_TP
(308.2 MB)
CFT-90-W_Zx
(274.5 MB)
SBT-90-W SBT-90-W_Mech
(812.8 KB)
SBT-90-W_ASAP
(133.7 MB)
SBT-90-W_LT
(30.8 MB)
SBT-90-W_TP
(30.8 MB)
SBT-90-W_Zx
(24.4 MB)
SFT-10-W SFT-10-W_Mech
(N/A)
SFT-10-W_ASAP
(N/A)
SFT-10-W_LT
(141.9 MB)
SFT-10-W_TP
(137.0 MB)
SFT-10-W_Zx
(142.1 MB)
SST-20-WxH SST-20-WxH_Mech
(13.7 KB)
SST-20-WxH_ASAP
(134.6 MB)
SST-20-WxH_LT
(134.6 MB)
SST-20-WxH_TP
(173.2 MB)
SST-20-WxH_Zx
(134.6 MB)
SST-20-WxS SST-20-WxS_Mech
(13.7 KB)
SST-20-WxS_ASAP
(134.6 MB)
SST-20-WxS_LT
(134.6 MB)
SST-20-WxS_TP
(173.2 MB)
SST-20-WxS_Zx
(134.6 MB)
SST-40-W SST-40-W_Mech
(8.1 KB)
SST-40-W_ASAP
(133.7 MB)
SST-40-W_LT
(276.5 MB)
SST-40-W_TP
(304.4 MB)
SST-40-W_Zx
(273.7 MB)
SST-40-WCS SST-40-WCS_Mech
(N/A)
SST-40-WCS_ASAP
(134.4 MB)
SST-40-WCS_LT
(148.7 MB)
SST-40-WCS_TP
(140.1 MB)
SST-40-WCS_Zx
(146.4 MB)
SST-70-W SST-70-W_Mech
(17.7 KB)
SST-70-W_ASAP
(132.3 MB)
SST-70-W_LT
(141.6 MB)
SST-70-W_TP
(137.5 MB)
SST-70-W_Zx
(141.8 MB)
SST-90-W SST-90-W_Mech
(60.0 KB)
SST-70-W_ASAP
(N/A)
SST-90-W_LT
(36.0 MB)
SST-90-W_TP
(31.7 MB)
SST-90-W_Zx
(24.6 MB)

Application Notes
