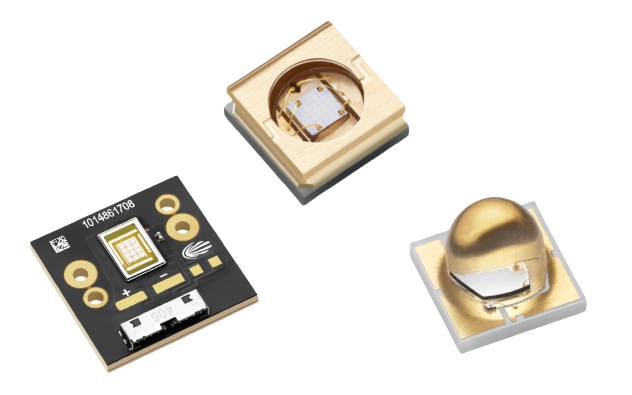

Luminus UV-A LEDs range from 1W to over 30 W of output power. These ultra-high power LEDs are designed for demanding applications such as Curing, Rapid-Prototyping, Maskless Lithography, as well as Industrial and Medical applications.

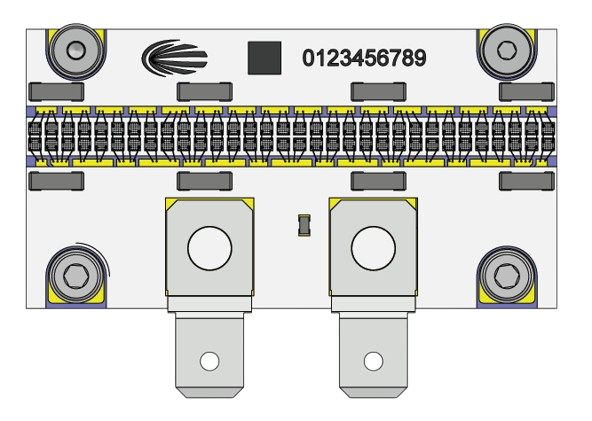

Luminus UV-C LEDs are highly efficient, have compact form factors and enable applications such as healthcare disinfection, water and air purification, and surface disinfection of consumer appliances.

ULTRAVIOLET PRODUCT BRIEF

UV-C APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation

UV-C FEATURES

  • Wavelengths ranging from 275-285 nm.
  • Wide range of power outputs from 3 mW to 100 mW.
  • Narrow (60⁰) and wide (130⁰) viewing angle packages for directional applications and flood exposure.

UV-C Benefits

  • Extensive range of power options to address a wide variety of applications- from surface disinfection to water and air flow applications.
  • Highly reliability, low thermal resistance packages enable drive currents up to 800 mA max.
  • Standard surface mount packages for easy integration

UV-C PRODUCT SELECTOR GUIDE

Download UV-C LEDs for Disinfection and Sterilization


Product Image Product Family Peak Wavelength Package Max Drive
Current
Optical Power at
Max Drive Current
Downloads Status
XBT-1313-Gen2 270 - 280 nm SMT
1.3 mm x 1.3 mm
100 mA 10 mW to 20 mW Datasheet

Ecosystem
Active

XBT-1313-UV LEDs

Features

  • Latest generation XBT-1313 LED with improved packaging technology enables higher than 10 mW
  • Emission wavelength between 270 nm and 280 nm
  • Ultra-compact form factor: 1.3 mm x 1.3 mm
  • Wide viewing angle of 150 degrees
  • High reliability package with ESD protection
  • Standard SMD Process• RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XST-3535-UV 270 - 285 nm SMT
3.5 mm x 3.5 mm
800 mA 80 mW to 110 mW Datasheet

Ecosystem
Active

XST-3535-UV LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 100 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package
  • Narrow viewing angle of 60 degrees
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XBT-3535-UV 270 - 285 nm SMT
3.5 mm x 3.5 mm
800 mA 70 mW to 100 mW Datasheet

Ecosystem
Active

XBT-3535-UV LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 80 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMD Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-UV 2 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm
800 mA 150 mW to 250 mW Datasheet

Ecosystem
Active

XFM-5050-UV 2 Chip LEDs

Features

  • Ultra-high power UVC LED: >120 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide viewing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-UV 3 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm
800 mA 250 mW to 350 mW Datasheet

Ecosystem
Active

XFM-5050-UV 3 Chip LEDs

Features

  • Ultra-high power UVC LED: >180 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide veiwing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-UV 4 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm
3200 mA 360 mW to 480 mW Datasheet

Ecosystem
Active

XFM-5050-UV 4 Chip LEDs

Features

  • Ultra-high power UVC LED: >240 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide viewing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation

UV-A APPLICATIONS

  • Curing
  • 3D Printing
  • Endoscopy
  • Horticulture
  • Machine Vision
  • Maskless Lithography
  • Scientific Instrumentation

UV-A FEATURES

  • Wide range of UVA wavelengths: 365 nm to 420 nm.
  • Vertical chip technology enables extremely high UV power from compact packages.
  • High conductivity copper coreboard and ceramic packages for thermal management.
  • Unencapsulated die with low profile windows facilitates high irradiance and efficient coupling into small-etendue systems.
  • Large operating dynamic range.

UV-A Benefits

  • Ideal solid state sources for 3D printing, fiber coupling and other etendue limited applications.
  • Integrated Chip-On-Board design for ease of system integration and optimum cooling.
  • Ultra-high Watts/mm2 from high current operation maximizes performance in curing and industrial applications.
  • Medical & industrial grade products with minimal product changes to support multi-year life-cycle of medical instruments.

UV-A PRODUCT SELECTOR GUIDE

Product Image Product Family Peak Wavelength Package Max Drive
Current
Optical Power at
Max Drive Current
Downloads Status
SST-08-UV 365 nm SMT
3.45 mm x 3.45 mm
750 mA 975 mW Datasheet
Ecosystem
Active
385 nm 1300 mW
395 nm 1300 mW
405 nm 1200 mW
SST-10-UV 365 nm SMT
3.45 mm x 3.45 mm
1.0 A 1.3 W - 1.6 W Datasheet
Ecosystem
Active
385 nm 2.5 W - 2.7 W
395 nm 2.5 W - 2.7 W
405 nm 2.2 W - 2.5 W

SST-10-UV LEDs

Features

  • High Power UV LED with Peak Wavelengths between 365-405nm
  • Industry standard 3.5mmx3.5mm package
  • 130° viewing angle at 50% Iv
  • Low Thermal Resistance - 3.4 C/W
  • Built-in ESD Protection

APPLICATIONS

  • Horticulture
  • Curing
  • Adhesives
  • Inks
  • Plastic Products
SBT-10X 385 nm SMT
3.45 mm x 3.45 mm
4.0 A 1.3 W - 4.0 W Datasheet
Ecosystem
Active
395 nm
405 nm
CBM-25X 385 nm MCPCB
26.5 mm x 16.0 mm
4.0 A 9.6 W typ (4A) Datasheet
Ecosystem
Active
405 nm 4.0 A 9.3 W typ (4A)

CBM-25X LEDs

Features

  • Mosaic Array UV LED chipset with 2.4 mm2 emitting area, 2.1:1 aspect ratio
  • Latest UVX technology enables ultra-high power density—operation up to 4 A/mm2
  • Automotive certification planned
  • High thermal conductivity isolated copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems/li>

APPLICATIONS

  • Automotive projection displays
  • 3D Printing and Additive Manufacturing
  • Machine Vision
  • Fiber-coupled illumination
  • Medical and Scientific Instrumentation
CBM-50X 365 nm MCPCB
26.5 mm x 16.0 mm
6.0 A 10.6 W typ (6A) Datasheet
Ecosystem
Active
385 nm 8.0 A 19.2 W typ (8A)
405 nm 8.0 A 18.6 W typ (8A)

CBM-50X LEDs

Features

  • Mosaic Array UV LED chipset with 5.2 mm2 emitting area, 1:1 aspect ratio
  • Latest UVX technology enables ultra-high power density operation up to 4 A/mm2
  • Available in wide range of UVA wavelengths: 365 nm - 410 n
  • Isolated, high thermal conductivity copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Environmentally friendly: REACH, RoHS and Halogen compliant

APPLICATIONS

  • 3D Printing and Additive Manufacturing
  • Machine Vision
  • Fiber-coupled illumination
  • Medical and Scientific Instrumentation
CBT-39-UV 405 nm MCPCB
26.5 mm x 16.0 mm
6.0 A 4.0 W to 8.0 W Datasheet
Binning and Labeling
DISCONTINUED. Consider CBM-25X or CBM-50X as
replacement. Contact Luminus for details

CBT-39-UV LEDs

Features

  • Chip area 1:1.1 aspect ratio: matched to TI's 0.55" XGA DLP for 3D printing applications
  • Low thermal resistance package, Rth, j-c = 1.6°C/W
  • Typical peak wavelength 405 nm
  • 6.6W typical optical power
  • Operation at up to 6A DC
  • Low-profile window for efficient coupling into optical systems of fibers

APPLICATIONS

  • 3D Printing
  • Fluorescence imaging
  • Ink and adhesives curing
  • Spot curing
  • Machine vision
  • Medical and scientific instrumentation
CBT-90-UV 405 nm MCPCB
28.0 mm x 26.75 mm
27.0 A 22.5 W to 30.0 W Datasheet
Ecosystem
Active
415 nm
CBM-120-UV-Gen4 CBM-120-UV (Gen4) 365 nm MCPCB
28.0 mm x 26.5 mm
24.0 A 16.4 W - 19.8 W Datasheet
Ecosystem
Active
385 nm 29.9 W - 32.9 W
405 nm 27.2 W - 29.9 W

CBM-120-UV LEDs

Features

  • Mosaic Array UV LED chipset with surface emitting area of 12 mm2, 4:3 aspect ratio
  • All the benefits of chip on board processing without the need for complicated assembly process
  • Vertical chip UV LED technology for high power density and uniform emission
  • Wide Range of UVA Wavelengths
  • High thermal conductivity common cathode copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Can be operated at variable drive currents up to 18A

APPLICATIONS

  • Curing: Inks, Coatings, Adhesives
  • Inspection
  • Machine Vision
  • Fiber-coupled illumination
  • Specialty Projection Systems for Maskless Lithography
  • Rapid Prototyping and 3D Printing
  • Medical and Scientific

DESIGN FILES (UVA)

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
CBM-120-UV_Gen3 CBM-120-UV_Gen3_Mech
(Contact Support)
CBM-120-UV_Gen3_ASAP
(N/A)
CBM-120-UV_Gen3_LT
(33 MB)
CBM-120-UV_Gen3_TP
(33 MB)
CBM-120-UV_Gen3_Zx
(33 MB)
CBM-120-UV_Gen4 CBM-120-UV_Gen4_Mech
(471.5 KB)
CBM-120-UV_Gen4_ASAP
(134.7 MB)
CBM-120-UV_Gen4_LT
(134.7 MB)
CBM-120-UV_Gen4_TP
(173.6 MB)
CBM-120-UV_Gen4_Zx
(134.7 MB)
CBM-25X-UV_Gen5 CBM-25X-UV_Gen5_Mech
(184.6 KB)
CBM-25X-UV_Gen5_ASAP
(132.3 MB)
CBM-25X-UV_Gen5_LT
(132.3 MB)
CBM-25X-UV_Gen5_TP
(132.3 MB)
CBM-25X-UV_Gen5_Zx
(132.3 MB)
CBM-40-UV_Gen3 CBM-40-UV_Gen3_Mech
(Contact Support)
CBM-40-UV_Gen3_ASAP
(133.3 MB)
CBM-40-UV_Gen3_LT
(133.3 MB)
CBM-40-UV_Gen3_TP
(173 MB)
CBM-40-UV_Gen3_Zx
(133.3 MB)
CBM-40-UV_Gen4 CBM-40-UV_Gen4_Mech
(718.8 KB)
CBM-40-UV_Gen4_ASAP
(134.4 MB)
CBM-40-UV_Gen4_LT
(134.4 MB)
CBM-40-UV_Gen4_TP
(174.7 MB)
CBM-40-UV_Gen4_Zx
(134.4 MB)
CBM-50X-UV_Gen5 CBM-50X-UV_Gen5_Mech
(742.9 KB)
CBM-50X-UV_Gen5_ASAP
(132.2 MB)
CBM-50X-UV_Gen5_LT
(132.2 MB)
CBM-50X-UV_Gen5_TP
(132.2 MB)
CBM-50X-UV_Gen5_Zx
(132.2 MB)
CBM-80-UV_Gen4 CBM-80-UV_Gen4_Mech
(533 KB)
CBM-80-UV_Gen4_ASAP
(134.8 MB)
CBM-80-UV_Gen4_LT
(134.8 MB)
CBM-80-UV_Gen4_TP
(173.2 MB)
CBM-80-UV_Gen4_Zx
(134.8 MB)
CBT-120-UV CBT-120-UV_Mech
(Contact Support)
CBT-120-UV_ASAP
(N/A)
CBT-120-UV_LT
(31.2 MB)
CBT-120-UV_TP
(24.3 MB)
CBT-120-UV_Zx
(24.3 MB)
CBT-39-UV CBT-39-UV_Mech
(1 MB)
CBT-39-UV_ASAP
(N/A)
CBT-39-UV_LT
(31.5 MB)
CBT-39-UV_TP
(24.2 MB)
CBT-39-UV_Zx
(24.2 MB)
CBT-90-UV CBT-90-UV_Mech
(1.2 MB)
CBT-90-UV_ASAP
(133.9 MB)
CBT-90-UV_LT
(133.9 MB)
CBT-90-UV_TP
(133.9 MB)
CBT-90-UV_Zx
(133.9 MB)
SBM-120-UV SBM-120-UV_Mech
(822.5 KB)
SBM-120-UV_ASAP
(135.1 MB)
SBM-120-UV_LT
(135.1 MB)
SBM-120-UV_TP
(173 MB)
SBM-120-UV_Zx
(135.1 MB)
SBT-10X SBT-10X_Mech
(Contact Support)
SBT-10X_ASAP
(134.3 MB)
SBT-10X_LT
(144.6 MB)
SBT-10X_TP
(138.3 MB)
SBT-10X_Zx
(144.6 MB)
SST-08-UV-B130 SST-08-UV-B130_Mech
(111.1 KB)
SST-08-UV-B130_ASAP
(132.4 MB)
SST-08-UV-B130_LT
(132.4 MB)
SST-08-UV-B130_TP
(N/A)
SST-08-UV-B130_Zx
(132.4 MB)
SST-10-UV-A130 SST-10-UV-A130_Mech
(38.7 KB)
SST-10-UV-A130_ASAP
(134 MB)
SST-10-UV-A130_LT
(133.9 MB)
SST-10-UV-A130_TP
(167.2 MB)
SST-10-UV-A130_Zx
(133.9 MB)

DESIGN FILES (UVC)

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro OPTIS/Speos Zemax
XBT-1313-UV-Gen2 XBT-1313-UV-Gen2_Mech
(11.9 KB)
XBT-1313-UV-Gen2_ASAP
(95.2 MB)
XBT-1313-UV-Gen2_LT
(95.2 MB)
XBT-1313-UV-Gen2_TP
(95.2 MB)
XBT-1313-UV-Gen2_Sp
(96.2 MB)
XBT-1313-UV-Gen2_Zx
(95.2 MB)
XBT-3535 XBT-3535_Mech
(19.2 KB)
XBT-3535_ASAP
(115.9 MB)
XBT-3535_LT
(115.9 MB)
XBT-3535_TP
(115.9 MB)
XBT-3535_Sp
(117.6 MB)
XBT-3535_Zx
(115.9 MB)
XFM-5050-2CHIP XFM-5050-2Chip_Mech
(60.9 KB)
XFM-5050-2Chip_ASAP
(111.8 MB)
XFM-5050-2Chip_LT
(111.8 MB)
XFM-5050-2Chip_TP
(106.4 MB)
XFM-5050-2Chip_Sp
(113.3 MB)
XFM-5050-2Chip_Zx
(111.8 MB)
XFM-5050-3CHIP XFM-5050-3Chip_Mech
(87.6 KB)
XFM-5050-3Chip_ASAP
(110.3 MB)
XFM-5050-3Chip_LT
(110.3 MB)
XFM-5050-3Chip_TP
(110.3 MB)
XFM-5050-3Chip_Sp
(111.9 MB)
XFM-5050-3Chip_Zx
(110.3 MB)
XFM-5050-4CHIP XFM-5050-4Chip_Mech
(105.9 KB)
XFM-5050-4Chip_ASAP
(94.0 MB)
XFM-5050-4Chip_LT
(94.0 MB)
XFM-5050-4Chip_TP
(107.9 MB)
XFM-5050-4Chip_Sp
(95.4 MB)
XFM-5050-4Chip_Zx
(94.0 MB)
XST-3535 XST-3535_Mech
(11.6 KB)
XST-3535_ASAP
(100.8 MB)
XST-3535_LT
(100.8 MB)
XST-3535_TP
(100.8 MB)
XST-3535_Sp
(102.2 MB)
XST-3535_Zx
(100.8 MB)

Documents
