COLOR LEDS

MONOCHROMATIC
High power CHIP-ON-BOARD

LED chip mounted directly on metal core board for highest current density operation and best thermal resistance

ecosystem WHERE TO BUY

APPLICATIONS

  • Horticulture Lighting
  • Entertainment / Stage Lighting
  • Architectural Lighting
  • Industrial machine vision
  • Medical and Life Science
  • Projection Display

FEATURES

  • Individually packaged Red, Green and Blue colors of various wavelengths
  • Emission size ranging from 4.0 mm2 to 12 mm2
  • Best thermal resistance
  • Highest current density

Benefits

  • High brightness in single monolithic light source.
  • Package form factor ideal for long throw application and fiber coupling.
  • Integrated Chip-On-Board design for ease of system integration and optimum cooling.
  • Semiconductor Green and Deep Red wavelengths available for specialized applications.

PRODUCT SELECTOR GUIDE

Product Image Product Color Package Max
Drive Current		 Optical Output Links Status
PT-26-RA Red Amber (613 nm) 21.0 mm x 15.5 mm
core board		 10.4 A 960 - 1,300 lm (10.4 A) Contact Luminus Active

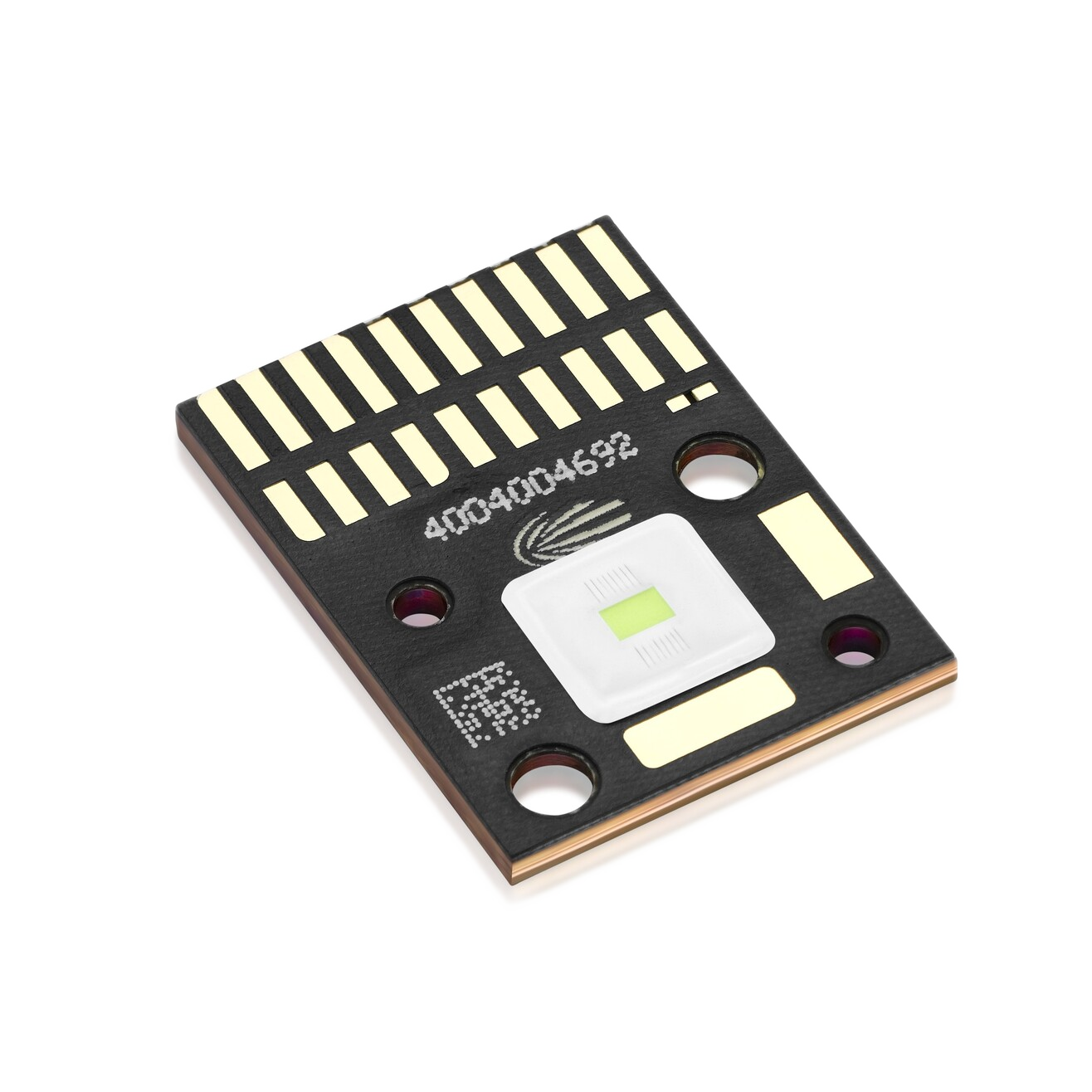

PT-26-CG Phosphor Converted Green (555 nm) 15.6 A 2,640 - 3,780 lm (10.4 A) Contact Luminus
PT-26-B Display Blue (452 nm) 15.6 A 7.8- 11.5 lm (10.4 A) Contact Luminus
PT-26-BP Blue Pump (445 nm) 15.6 A 7.8 - 11.5 lm (10.4 A) Contact Luminus
PT-39-G-L21 Green
(525 nm)		 26.50 mm x 16.00 mm
core board		 13.7 A 1,250 - 2,020 lm
(9.8 A)		 Datasheet Discontinued – Consider PT-39-G-L51
PT-39-G-L51 Green
(520 nm)		 21.85 mm x 15.00 mm
core board		 12 A 2.6 - 3.6 W
(7.5 A)		 Datasheet Active
PT-39-DR-L51 Deep Red
(650 nm)		 21.85 mm x 15.00 mm
core board		 12 A 2.6 - 4.0 W
(7.5 A)		 Datasheet Active
PT-39-B-L21 Blue
(460 nm)		 26.50 mm x 16.00 mm
core board		 13.7 A 255 - 370 lm
(9.8 A)		 Datasheet Not recommended for new design
PT-40-RAX-L55 Red Amber
(613 nm)		 21.85 mm x 15.00 mm
core board		 13.7 A 800 - 1,125 lm
(9.8 A)		 Datasheet Discontinued
PT-40-G-L51 Green
(525 nm)		 21.85 mm x 15.00 mm
core board		 13.7 A 1,450 - 2,150 lm
(9.8 A)		 Datasheet Discontinued
PT-40-B-L51 Blue
(460 nm)		 21.85 mm x 15.00 mm
core board		 13.7 A 280 - 430 lm
(9.8 A)		 Datasheet Discontinued

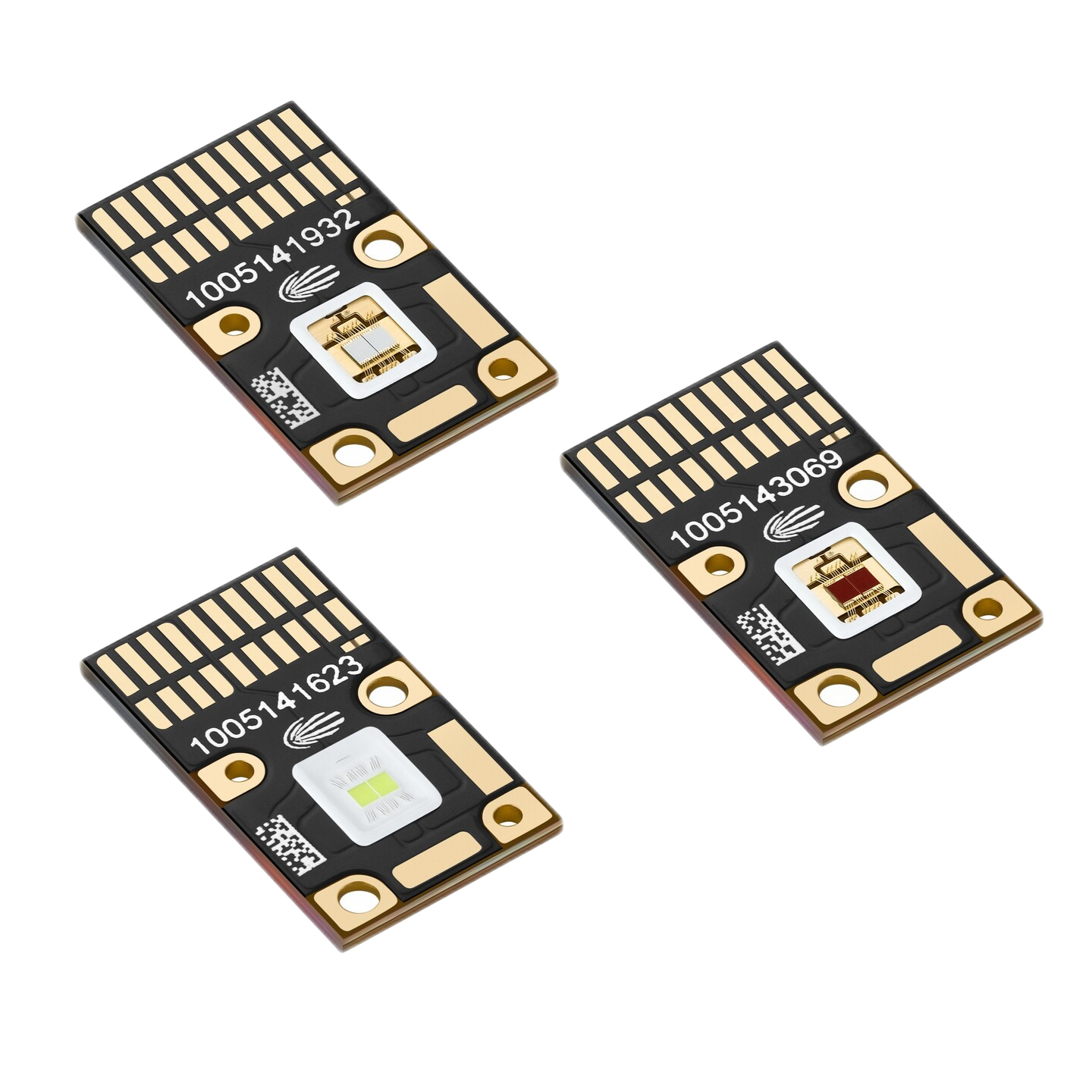

PTM-40X-RA Red Amber (613 nm) 27.0 mm x 15.5 mm
core board		 8.0 A 1,530 - 2,180 lm (8 A) Datasheet Active
PTM-40X-CG Phosphor Converted Green (555 nm) 12.0 A 5,150 - 6,740 lm (8 A) Datasheet
PTM-40X-B Display Blue (452 nm) 12.0 A 12.5 - 18.4 W (8 A) Datasheet
PTM-40X-BP Blue Pump (445 nm) 12.0 A 13.3 - 19.9 W (8 A)

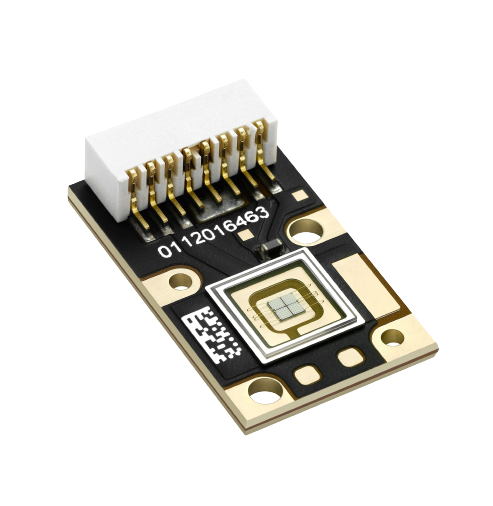

CBM-40-SB Sky Blue
(PWL: 470 nm)		 26.50 mm x 16.00 mm
core board		 6.0 A 4.7 - 6.5 W
(6.0 A)		 Datasheet Active

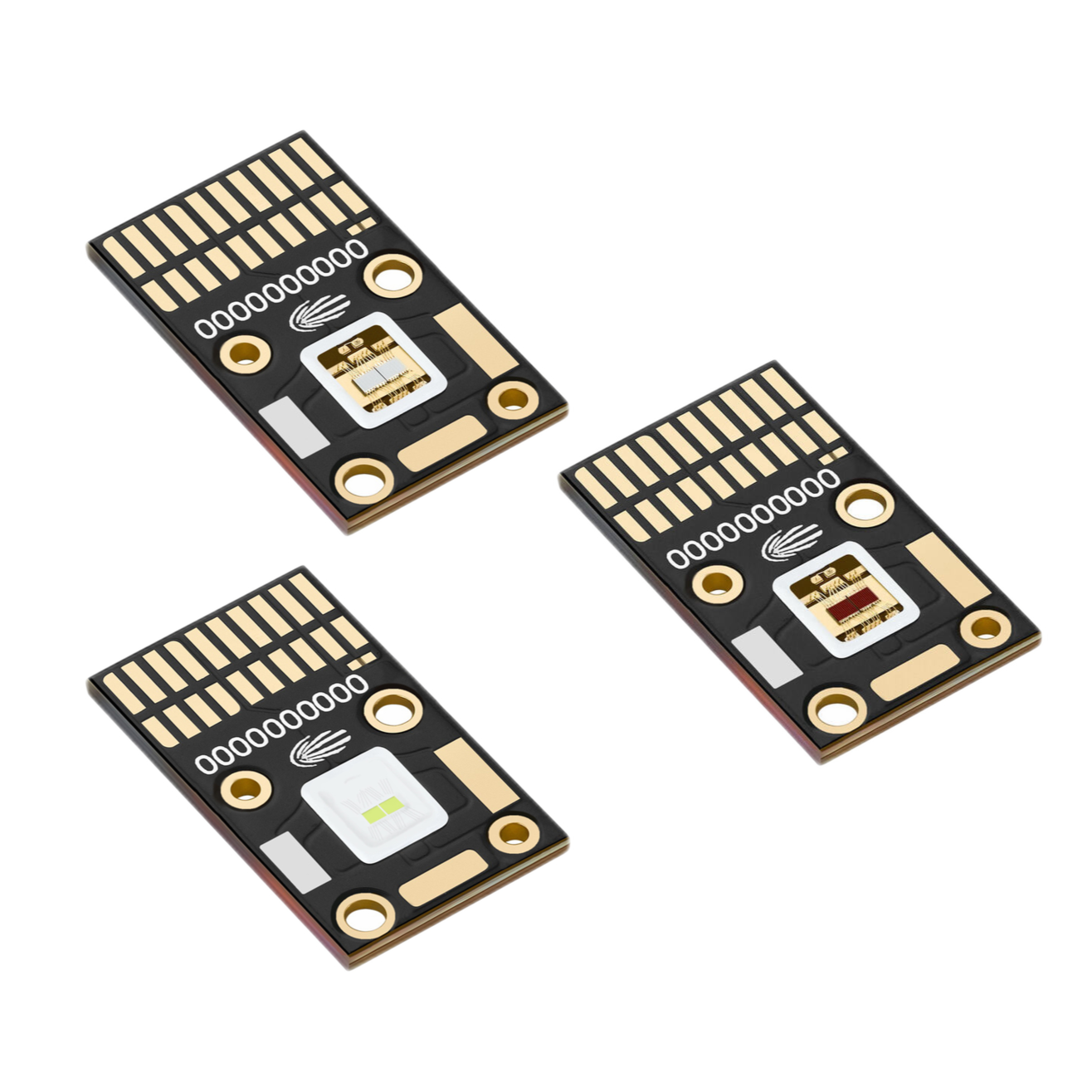

PTM-50X-RA Red Amber (613 nm) 27.0 mm x 15.5 mm
core board		 11 A 1,850 - 2,660 lm (10 A) Datasheet Active
PTM-50X-CG Phosphor Converted Green (555 nm) 16 A 6,300 - 8,650 lm (10 A) Datasheet
PTM-50X-B Display Blue (455 nm) 16 A 17.0 - 25.3 lm (10 A) Datasheet
PTM-50X-BP Blue Pump (445 nm) 16 A 21.3 - 27.3 lm (10 A)
PT-54-RAX-L35 Red Amber
(613 nm)		 26.50 mm x 16.00 mm
core board		 18.9 A 1,055 - 1,300 lm
(13.5 A)		 Datasheet Discontinued
PT-54-G-L35 Green
(525 nm)		 26.50 mm x 16.00 mm
core board		 18.9 A 1,900 - 3,200 lm
(9.8 A)		 Datasheet Discontinued
PT-54-B-L31 Blue
(460 nm)		 26.50 mm x 16.00 mm
core board		 18.9 A 350 - 590 lm
(9.8 A)		 Datasheet Discontinued
CFT-50X-BP Blue Pump
(Peak WL: 440 nm)		 18.0 mm x 26.5 mm
electrically isolated core board		 10 A (CW)
12.5 A (Pulsed)		 16.0 - 22.0 W
(7.5 A)		 Datasheet
Ecosystem 		Active

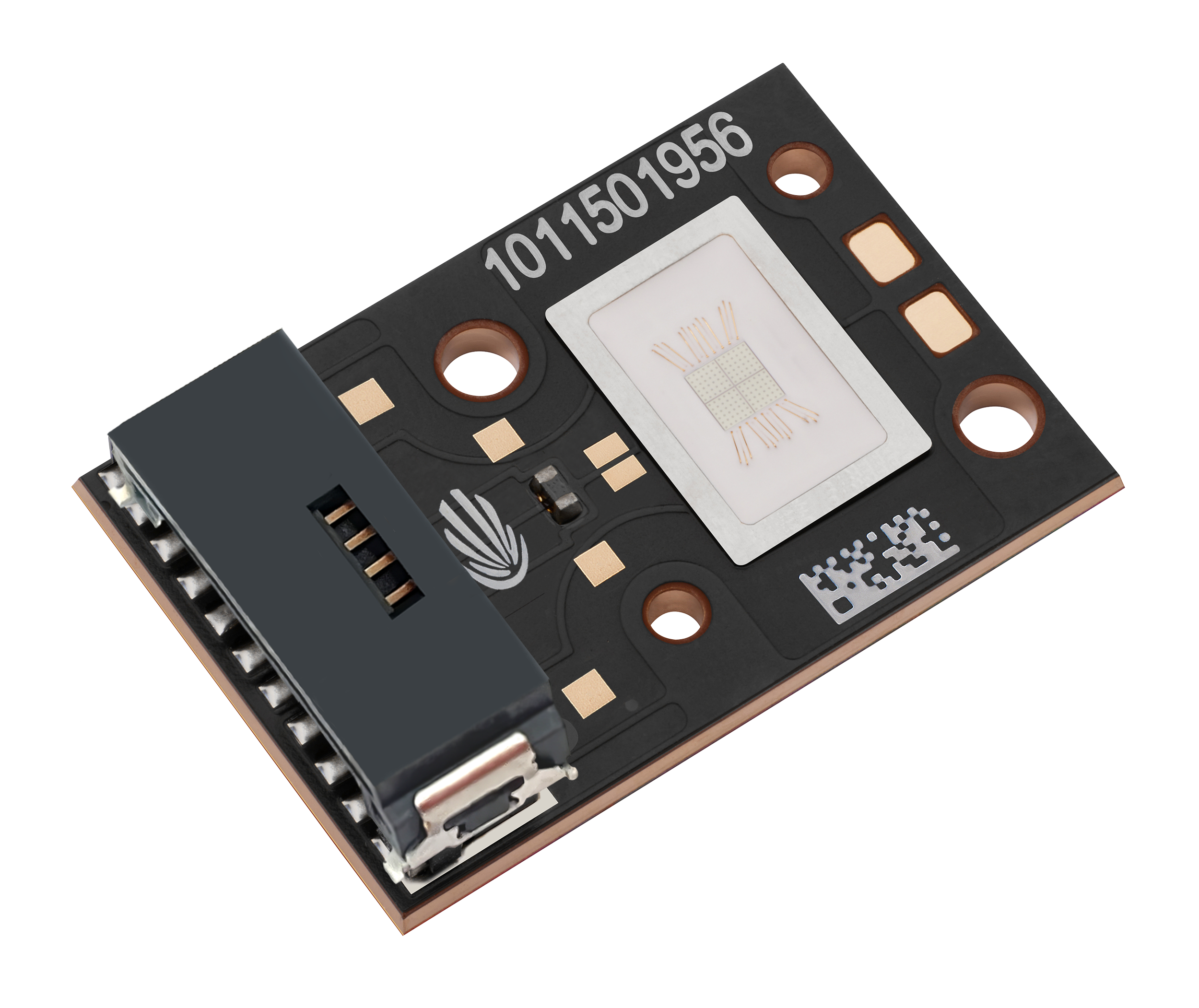

CFT-50X-B Blue
(Peak WL: 460 nm)		 18.0 mm x 26.5 mm
electrically isolated core board		 10 A (CW)
12.5 A (Pulsed)		 13.0 - 17.5 W
(7.5 A)		 Datasheet
Ecosystem 		Active

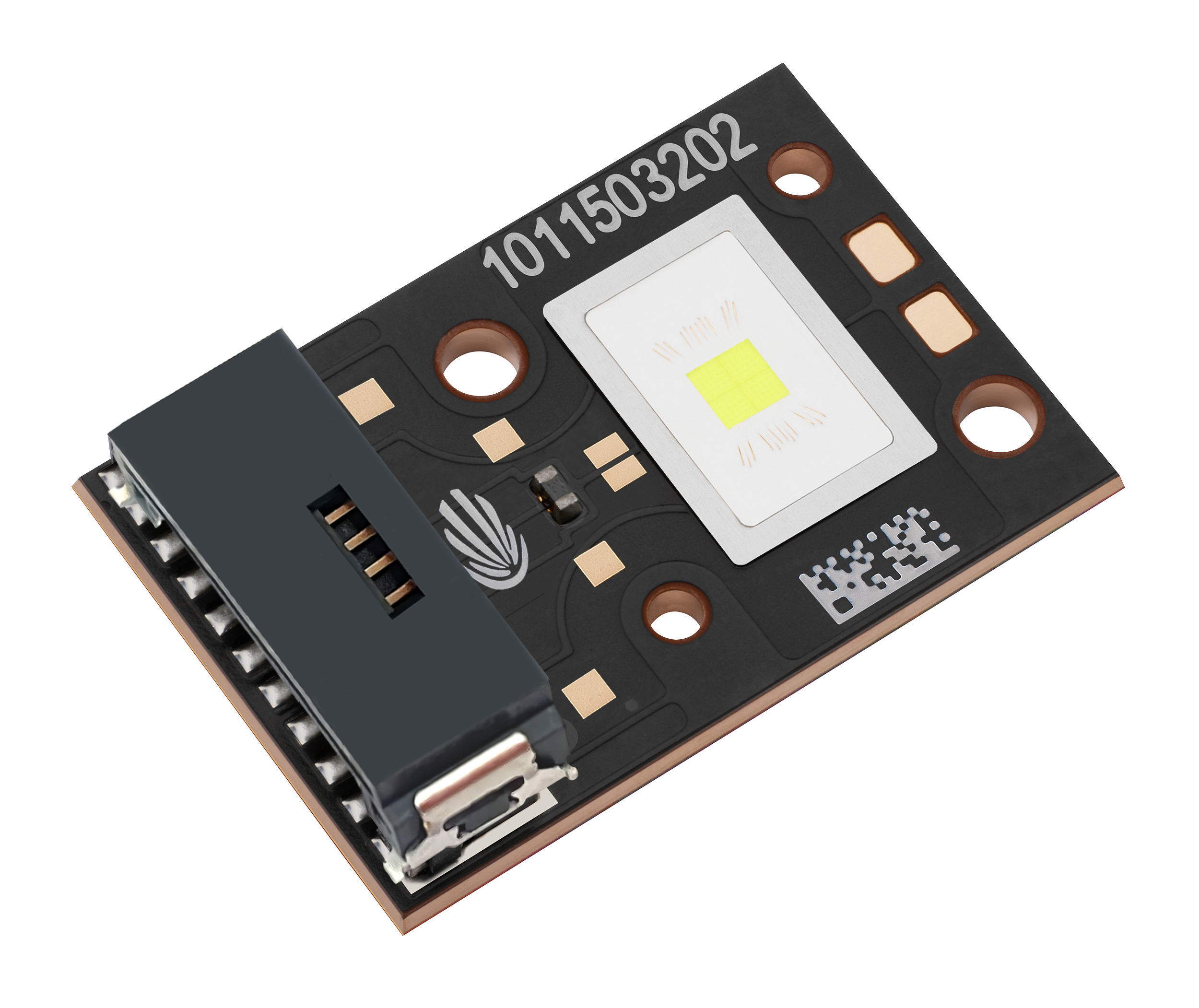

CFT-50X-CG-D Display Converted Green
(Center WL: 542 nm)		 18.0 mm x 26.5 mm
electrically isolated core board		 10 A (CW)
12.5 A (Pulsed)		 11.0 - 15.0 W
(7.5 A)		 Datasheet
Ecosystem 		Active
CFT-50X-CG-M Medical Converted Green
(Center WL: 570 nm)		 18.0 mm x 26.5 mm
electrically isolated core board		 10 A (CW)
12.5 A (Pulsed)		 10.25 - 14.0 W
(7.5 A)		 Datasheet
Ecosystem 		Active
CFT-50X-R Red
(Peak WL: 632 nm)		 18.0 mm x 26.5 mm
electrically isolated core board 		15 A (CW)
25 A (Pulsed)		 7.0 - 10.25 W
(15 A)		 Datasheet
Ecosystem 		Active

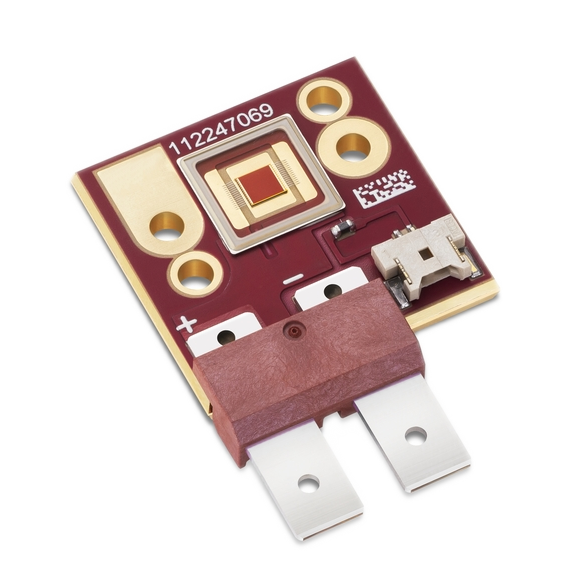

CBT-90-RX-L15 Red Amber
(620 nm)		 28.00 mm x 26.75 mm
core board		 27.0 A 770 - 1,850 lm
(13.5 A)		 Datasheet Active

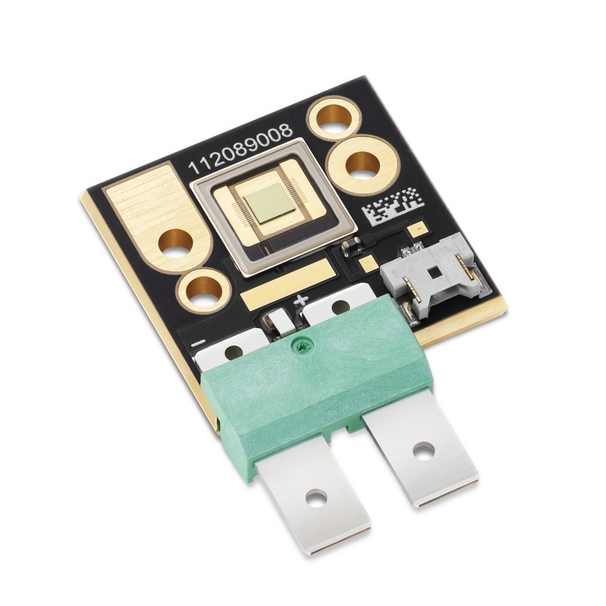

CBT-90-G-L11 Green
(527 nm)		 28.00 mm x 26.75 mm
core board		 27.0 A 2,000 - 3,200 lm
(13.5 A)		 Datasheet Active
CFT-90-CG-L11 Converted Green
(Center WL: 579 nm)		 28.00 mm x 26.75 mm
core board		 27.0 A 9.08 - 13.69 W
(22.5 A)		 Datasheet Active

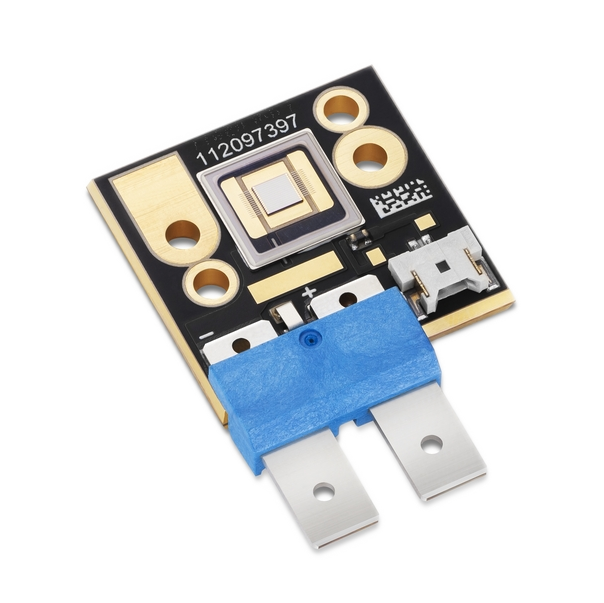

CBT-90-B-L11 Blue
(461 nm)		 28.00 mm x 26.75 mm
core board		 27.0 A 8.3 - 14.6 W
(13.5 A)		 Datasheet Active
PT-120-RAX Red Amber
(613 nm)		 28.00 mm x 26.75 mm
core board		 30.0 A 2,150 - 3,400 lm
(30.0 A)		 Datasheet Under EOL – Consider PT-121-RAX
PT-120-G Green
(525 nm)		 28.00 mm x 26.75 mm
core board		 30.0 A 4,200 - 6,200 lm
(30.0 A)		 Datasheet Under EOL – Consider PT-121-G
PT-120-B Blue
(460 nm)		 28.00 mm x 26.75 mm
core board		 30.0 A 750 - 1,300 lm
(30.0 A)		 Datasheet Under EOL – Consider PT-121-B
PT-121-RAX Red Amber
(613 nm)		 28.00 mm x 26.75 mm
core board		 36.0 A 2,150 - 3,400 lm
(30.0 A)		 Datasheet Active
PT-121-G Green
(525 nm)		 28.00 mm x 26.75 mm
core board		 30.0 A 4,200 - 6,200 lm
(30.0 A)		 Datasheet Active
PT-121-B Blue
(460 nm)		 28.00 mm x 26.75 mm
core board		 30.0 A 750 - 1,300 lm
(30.0 A)		 Datasheet Active
CBM-120-FR 730 nm 28.00 mm x 26.75 mm
core board		 18 A (CW) 4.6 - 10.6 W
(13.5 A)		 Datasheet
Ecosystem 		Active

DESIGN FILES

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
CBM-120-FR CBM-120-FR_Mech
(733.2 KB) 		CBM-120-FR_ASAP
(134.3 MB) 		CBM-120-FR_LT
(134.3 MB) 		CBM-120-FR_TP
(134.3 MB) 		CBM-120-FR_Zx
(134.3 MB)
CBM-40-SB CBM-40-SB_Mech
(224.7 KB) 		CBM-40-SB_ASAP
(132 MB) 		CBM-40-SB_LT
(138.2 MB) 		CBM-40-SB_TP
(135.6 MB) 		CBM-40-SB_Zx
(138.3 MB)
CBT-90-B CBT-90-B_Mech
(1.4 MB) 		CBT-90-B_ASAP
(142.6 MB) 		CBT-90-B_LT
(31.7 MB) 		CBT-90-B_TP
(24.4 MB) 		CBT-90-B_Zx
(24.4 MB)
CBT-90-G CBT-90-G_Mech
(1.4 MB) 		CBT-90-G_ASAP
(23.9 MB) 		CBT-90-G_LT
(31.4 MB) 		CBT-90-G_TP
(24.2 MB) 		CBT-90-G_Zx
(24.2 MB)
CBT-90-R CBT-90-R_Mech
(1.4 MB) 		CBT-90-R_ASAP
(142.3 MB) 		CBT-90-R_LT
(31.1 MB) 		CBT-90-R_TP
(24.4 MB) 		CBT-90-R_Zx
(24.2 MB)
CFT-50X-B CFT-50X-B_Mech
(1.1 MB) 		CFT-50X-B_ASAP
(132.1 MB) 		CFT-50X-B_LT
(138.5 MB) 		CFT-50X-B_TP
(135.9 MB) 		CFT-50X-B_Zx
(138.6 MB)
CFT-50X-CA CFT-50X-CA_Mech
(955.4 KB) 		CFT-50X-CA_ASAP
(132.1 MB) 		CFT-50X-CA_LT
(140.8 MB) 		CFT-50X-CA_TP
(136.1 MB) 		CFT-50X-CA_Zx
(141 MB)
CFT-50X-CG-D CFT-50X-CG-D_Mech
(842.2 KB) 		CFT-50X-CG-D_ASAP
(132.7 MB) 		CFT-50X-CG-D_LT
(140.3 MB) 		CFT-50X-CG-D_TP
(135.8 MB) 		CFT-50X-CG-D_Zx
(140.6 MB)
CFT-50X-CG-M CFT-50X-CG-M_Mech
(686 KB) 		CFT-50X-CG-M_ASAP
(132 MB) 		CFT-50X-CG-M_LT
(140.5 MB) 		CFT-50X-CG-M_TP
(136 MB) 		CFT-50X-CG-M_Zx
(140.7 MB)
CFT-50X-R CFT-50X-R_Mech
(979.7 KB) 		CFT-50X-R_ASAP
(132.6 MB) 		CFT-50X-R_LT
(138.3 MB) 		CFT-50X-R_TP
(135.5 MB) 		CFT-50X-R_Zx
(138.4 MB)
CFT-90-CG CFT-90-CG_Mech
(448.2 KB) 		CFT-90-CG_ASAP
(134.2 MB) 		CFT-90-CG_LT
(177.6 MB) 		CFT-90-CG_TP
(138.1 MB) 		CFT-90-CG_Zx
(143 MB)
PT-120-B PT-120-B_Mech
(1.8 MB) 		PT-120-B_ASAP
(N/A) 		PT-120-B_LT
(144 MB) 		PT-120-B_TP
(144 MB) 		PT-120-B_Zx
(132.6 MB)
PT-120-G PT-120-G_Mech
(1.8 MB) 		PT-120-G_ASAP
(N/A) 		PT-120-G_LT
(144 MB) 		PT-120-G_TP
(144 MB) 		PT-120-G_Zx
(132.6 MB)
PT-120-RAX PT-120-RAX_Mech
(1.8 MB) 		PT-120-RAX_ASAP
(142.8 MB) 		PT-120-RAX_LT
(142.8 MB) 		PT-120-RAX_TP
(142.8 MB) 		PT-120-RAX_Zx
(142.8 MB)
PT-121-B PT-121-B_Mech
(355.1 KB) 		PT-121-B_ASAP
(132.4 MB) 		PT-121-B_LT
(138 MB) 		PT-121-B_TP
(135.5 MB) 		PT-121-B_Zx
(138.1 MB)
PT-121-G PT-121-G_Mech
(355.1 KB) 		PT-121-G_ASAP
(132 MB) 		PT-121-G_LT
(139.3 MB) 		PT-121-G_TP
(136.2 MB) 		PT-121-G_Zx
(139.6 MB)
PT-121-RAX PT-121-RAX_Mech
(355.1 KB) 		PT-121-RAX_ASAP
(132 MB) 		PT-121-RAX_LT
(138.3 MB) 		PT-121-RAX_TP
(135.9 MB) 		PT-121-RAX_Zx
(138.4 MB)
PT-26-B PT-26-B_Mech
(547.9 KB) 		PT-26-B_ASAP
(132.4 MB) 		PT-26-B_LT
(132.4 MB) 		PT-26-B_TP
(132.4 MB) 		PT-26-B_Zx
(132.4 MB)
PT-26-CG PT-26-CG_Mech
(412.5 KB) 		PT-26-CG_ASAP
(132.6 MB) 		PT-26-CG_LT
(132.6 MB) 		PT-26-CG_TP
(132.6 MB) 		PT-26-CG_Zx
(132.6 MB)
PT-26-RA PT-26-RA_Mech
(546.9 KB) 		PT-26-RA_ASAP
(132.4 MB) 		PT-26-RA_LT
(132.4 MB) 		PT-26-RA_TP
(132.4 MB) 		PT-26-RA_Zx
(132.4 MB)
PT-39-B PT-39-B_Mech
(1.1 MB) 		PT-39-B_ASAP
(134.2 MB) 		PT-39-B_LT
(134.2 MB) 		PT-39-B_TP
(134.2 MB) 		PT-39-B_Zx
(134.2 MB)
PT-39-DR PT-39-DR_Mech
(946 KB) 		PT-39-DR_ASAP
(134.5 MB) 		PT-39-DR_LT
(134.5 MB) 		PT-39-DR_TP
(134.5 MB) 		PT-39-DR_Zx
(134.5 MB)
PT-39-G PT-39-G_Mech
(2.2 MB) 		PT-39-G_ASAP
(134.2 MB) 		PT-39-G_LT
(134.2 MB) 		PT-39-G_TP
(134.2 MB) 		PT-39-G_Zx
(134.2 MB)
PTM-40-B PTM-40-B_Mech
(529.5 KB) 		PTM-40-B_ASAP
(134.3 MB) 		PTM-40-B_LT
(134.3 MB) 		PTM-40-B_TP
(134.3 MB) 		PTM-40-B_Zx
(134.3 MB)
PTM-40-CG PTM-40-CG_Mech
(344.6 KB) 		PTM-40-CG_ASAP
(134.1 MB) 		PTM-40-CG_LT
(134.1 MB) 		PTM-40-CG_TP
(134.1 MB) 		PTM-40-CG_Zx
(134.1 MB)
PTM-40-RA PTM-40-RA_Mech
(491.9 KB) 		PTM-40-RA_ASAP
(134.3 MB) 		PTM-40-RA_LT
(134.3 MB) 		PTM-40-RA_TP
(134.3 MB) 		PTM-40-RA_Zx
(134.3 MB)
PTM-40X-B PTM-40X-B_Mech
(253.9 KB) 		PTM-40X-B_ASAP
(131.9 MB) 		PTM-40X-B_LT
(N/A) 		PTM-40X-B_TP
(N/A) 		PTM-40X-B_Zx
(138.5 MB)
PTM-40X-CG PTM-40X-CG_Mech
(109.6 KB) 		PTM-40X-CG_ASAP
(132.4 MB) 		PTM-40X-CG_LT
(N/A) 		PTM-40X-CG_TP
(N/A) 		PTM-40X-CG_Zx
(141.6 MB)
PTM-40X-RA PTM-40X-RA_Mech
(295.6 KB) 		PTM-40X-RA_ASAP
(132.1 MB) 		PTM-40X-RA_LT
(138.5 MB) 		PTM-40X-RA_TP
(135.7 MB) 		PTM-40X-RA_Zx
(138.6 MB)
PTM-50X-B PTM-50X-B_Mech
(708.9 KB) 		PTM-50X-B_ASAP
(132.2 MB) 		PTM-50X-B_LT
(138.8 MB) 		PTM-50X-B_TP
(136.7 MB) 		PTM-50X-B_Zx
(138.9 MB)
PTM-50X-CG PTM-50X-CG_Mech
(159.4 KB) 		PTM-50X-CG_ASAP
(131.9 MB) 		PTM-50X-CG_LT
(140.5 MB) 		PTM-50X-CG_TP
(135.9 MB) 		PTM-50X-CG_Zx
(140.7 MB)
PTM-50X-RA PTM-50X-RA_Mech
(435 KB) 		PTM-50X-RA_ASAP
(148.5 MB) 		PTM-50X-RA_LT
(138.6 MB) 		PTM-50X-RA_TP
(152.7 MB) 		PTM-50X-RA_Zx
(156.5 MB)

Application Notes

GENERAL LIGHTING
Electrical Stress Damage to LEDs and How to Prevent It (APN-002815)
Design Guidelines and Ecosystems for Luminus COB Arrays (APN-002319)
General Handling and Soldering Notes for Luminus COB Arrays (APN-002320)
Luminus ECOSystem Optical Data Sheet (APN-002531)
Soldering and Handling of Luminus Cube Surface Mount Devices (APN-002577)
Measurement and Design Considerations for Luminus Cube Surface Mount Devices (APN-002576)
Guidelines for Luminus Dynamic COBs - Warm Dimming and Tunable White (APN-002807)
SPECIALTY LIGHTING
UVC LEDs for Disinfection and Sterilization (APN-002805)
Design Guidelines for SFT Chipsets Assembly (APN-002804)
Soldering and Handling of Surface Mount Devices (APN-001473)
Thermal Management of Big Chip LEDs (APN-001443)
Testing Big Chip LEDs (APN-001843)
Thermal Cross-Talk in Multi-Chip LED Packages (APN-002127)
