COB ARRAYS

LUX & LUX Pro Series

Highest efficacy at typical >160lm/W, general lighting, directional source delivering high lumen efficacy from the largest selection of Light Emitting Surface (LES), operating power range, and color quality

documents WHERE TO BUY

APPLICATIONS

  • Retail/Hospitality/Commercial
  • Track/Spot/Bulb
  • Architectural/Museums/Exhibits

FEATURES

  • Typical efficacy >160 LPW, 3000K 90CRI, highest reach 180LPW
  • Complete range of LES sizes and lumen outputs
  • AccuWhiteTM Color rendering to 97CRI typ.
  • SensusTM and Xtreme SensusTM Pure White
  • UL and IEC qualified
  • At least 90 CRI for whole series products

BENEFITS

  • Enhanced efficacy reduces power consumption
  • Source optimized for beam characteristics and optics selection
  • Sources to achieve highest color rendering and optimum appearance
  • Pure white color rendering with enhanced color saturation

PRODUCT SELECTOR

Need a help to select product？Lumen Calculator for COB Arrays

Product Image Product Family LES (mm) Substrate Size (mm) Power Range (W) Flux Range @ 3000K, 90CRI Links

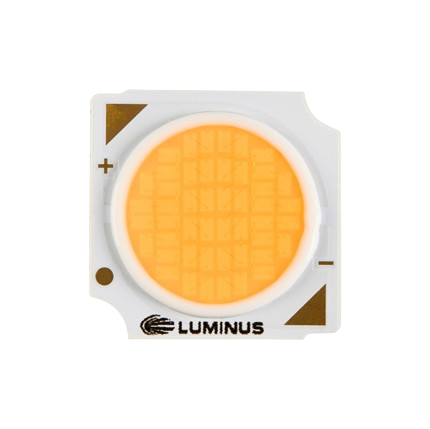

CLM-9 Lux Pro CLM-9 Lux Pro 9.6 13.5 * 13.5 8.3 - 23.3 1380 - 3800 Datasheet
Ecosystem

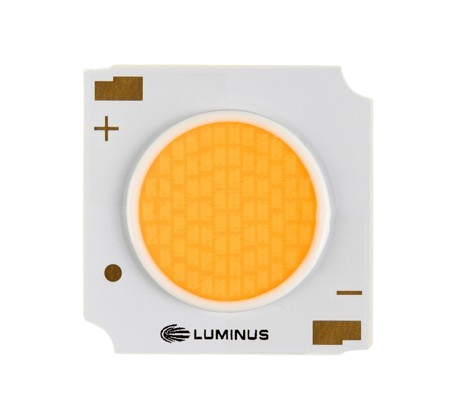

CXM-11 Lux Pro CXM-11 Lux Pro 11.7 19 * 19 15.1 - 35.0 2450 - 5550 Datasheet
Ecosystem

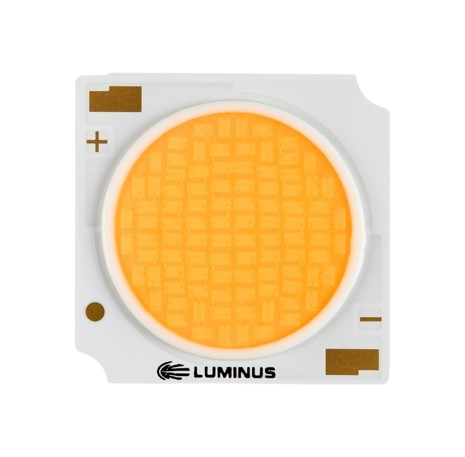

CLM-14 Lux Pro CLM-14 Lux Pro 14.3 19 * 19 16.5 - 46.7 2770 - 7500 Datasheet
Ecosystem

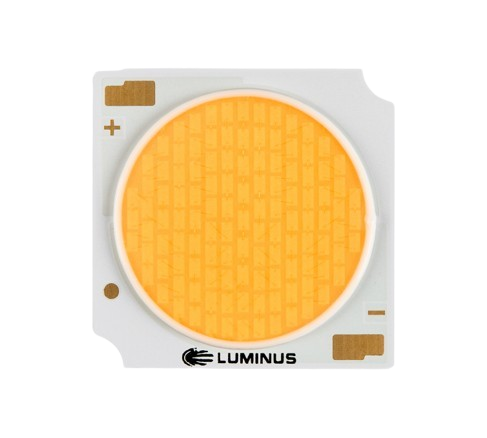

CXM-15 Lux Pro CXM-15 Lux Pro 15.3 19 * 19 26.3 - 56.8 4230 - 8870 Datasheet

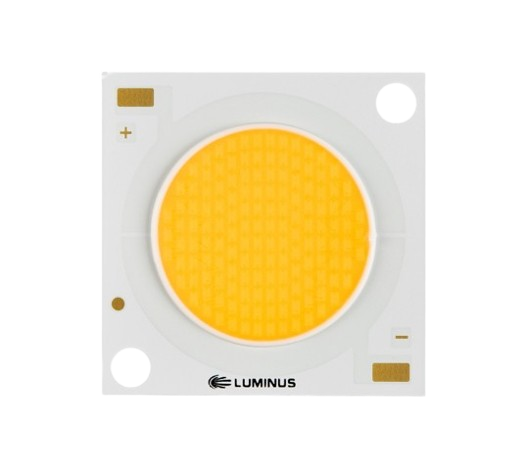

CXM-18 Lux Pro CXM-18 Lux Pro 18.3 28 * 28 26.6 - 70.4 4500 - 11000 Datasheet
Ecosystem

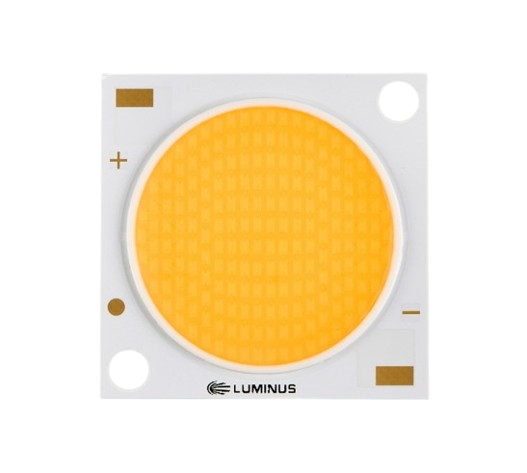

CLM-22 Lux Pro CLM-22 Lux Pro 22.0 28 * 28 34.9 - 93.8 5950 - 14500 Datasheet
Ecosystem

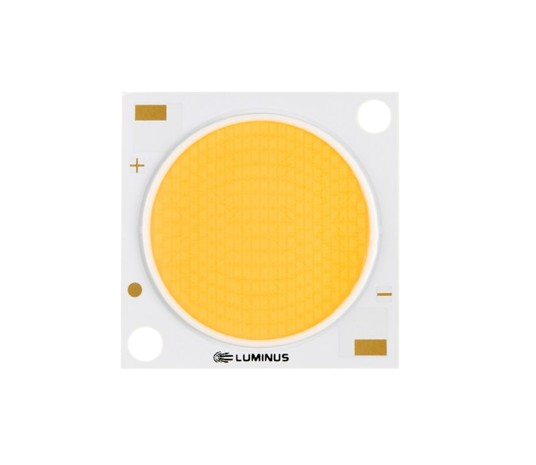

CXM-22 Lux Pro CXM-22 Lux Pro 22.0 28 * 28 52.3 - 140.2 8750 - 19500 Datasheet
Ecosystem

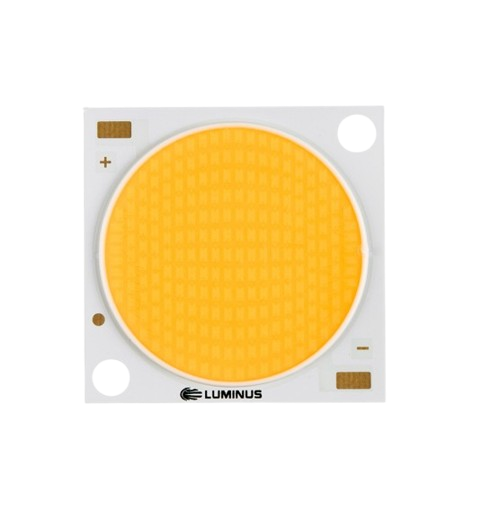

CXM-23 Lux Pro CXM-23 Lux Pro 23.8 28 * 28 43.2 - 114.4 7300 - 17000 Datasheet
lux-cxm-4 CXM-4 4.5 13.5 * 13.5 4.0 - 7.7 505 - 810 Datasheet
Ecosystem
lux-cxm-6 CXM-6 6.3 13.5 * 13.5 5.0 - 7.5 770 - 1230 Datasheet
Ecosystem
lux-clm-9 CLM-9 9.8 13.5 * 13.5 (TC)
15.0 * 15.0 (TA) 		8.2 - 15.0 1300 - 2080 Datasheet
Ecosystem
lux-cxm-9 CXM-9 9.8 13.5 * 13.5 (TC)
15.0 * 15.0 (TA) 		12.0 - 19.0 1825 - 2550 Datasheet
Ecosystem
lux-cxm-11 CXM-11 11.6 19.0 * 19.0 (TC)
18.5 * 18.5 (TA) 		15.0 - 22.7 2350 - 3300 Datasheet
Ecosystem
lux-clm-14 CLM-14 14.5 19.0 * 19.0 (TC)
18.5 * 18.5 (TA) 		16.5 - 30.3 2660 - 4260 Datasheet
Ecosystem
lux-cxm-14 CXM-14 14.5 19.0 * 19.0 (TC)
18.5 * 18.5 (TA) 		24.1 - 34.3 3795 - 4930 Datasheet
Ecosystem
lux-cxm-18 CXM-18 17.5 28.0 * 28.0 26.5 - 46.0 4505 - 7210 Datasheet
Ecosystem
lux-clm-22 CLM-22 22.0 28.0 * 28.0 35.2 - 60.0 5945 - 9510 Datasheet
Ecosystem
lux-cxm-22 CXM-22 22.0 28.0 * 28.0 52.0 - 90.5 8880 - 14200 Datasheet
Ecosystem

Use the COB Lumen Calculator to pick the right part number for your application

DESIGN FILES

Application Notes

GENERAL LIGHTING
Electrical Stress Damage to LEDs and How to Prevent It (APN-002815)
Design Guidelines and Ecosystems for Luminus COB Arrays (APN-002319)
General Handling and Soldering Notes for Luminus COB Arrays (APN-002320)
Luminus ECOSystem Optical Data Sheet (APN-002531)
Soldering and Handling of Luminus Cube Surface Mount Devices (APN-002577)
Measurement and Design Considerations for Luminus Cube Surface Mount Devices (APN-002576)
Guidelines for Luminus Dynamic COBs - Warm Dimming and Tunable White (APN-002807)
SPECIALTY LIGHTING
UVC LEDs for Disinfection and Sterilization (APN-002805)
Design Guidelines for SFT Chipsets Assembly (APN-002804)
Soldering and Handling of Surface Mount Devices (APN-001473)
Thermal Management of Big Chip LEDs (APN-001443)
Testing Big Chip LEDs (APN-001843)
Thermal Cross-Talk in Multi-Chip LED Packages (APN-002127)

Documents

Related Documents for Download
AccuWhite COB Product Brief
Luminus 5-Year Limited Warranty
