COB ARRAYS

Special Spectrum COBs

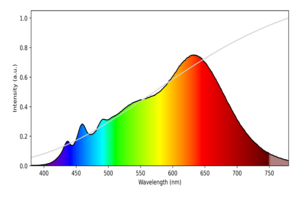

Smooth White Natural light broad spectrum with 95+CRI and low blue

Salud™ Enhanced spectrum for high melanopic human centric daytime lighting

APPLICATIONS

  • Human Centric Lighting
  • Natural Daylight Lighting
  • Full Spectrum Lighting

FEATURES

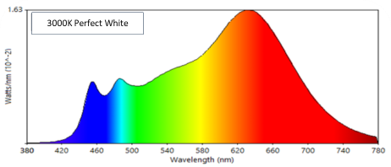

  • Uniform spectral response (no cyan dip) across the blue, green and into the red color spectrum
  • No harmful UV or violet emissions
  • Beautiful pure white light with enhanced cyan color rendering

Highlights

  • Power ranges from MR16 form factor (5 W) to over 75 W fixture powers
  • A single CCT and CRI value making color choice easier
  • True whites and extremely high contrast without the “pink” artifacts typical of below the black body locus products

PRODUCT SELECTOR

Not Recommended For New Design

Download Luminus Perfect White COB Datasheet

Download Luminus Smooth White COB Datasheet

Download Luminus Salud COB Datasheet

Product Image Product Family LES (mm) Substrate Size (mm) Typical Power (W) Perfect White Flux @ 3000K 90CRI @ 85oC (lm) Smooth White Flux @ 3000K @ 85C (lm) Salud Flux @ 3000K @ 85C (lm)
CXM-6 6.3 13.5 * 13.5 5.2 420 530 530
CXM-9 9.6 13.5 * 13.5 12.2 1,075 1285 1310
CXM-11 11.7 19 * 19 15.2 1,330 1680 1630
CXM-14 14.3 19 * 19 24.5 2,105 2665 2590
CLM-22 22 28 * 28 36.2 3,430 4020 4235

Application Notes

GENERAL LIGHTING
Electrical Stress Damage to LEDs and How to Prevent It (APN-002815)
Design Guidelines and Ecosystems for Luminus COB Arrays (APN-002319)
General Handling and Soldering Notes for Luminus COB Arrays (APN-002320)
Luminus ECOSystem Optical Data Sheet (APN-002531)
Soldering and Handling of Luminus Cube Surface Mount Devices (APN-002577)
Measurement and Design Considerations for Luminus Cube Surface Mount Devices (APN-002576)
Guidelines for Luminus Dynamic COBs - Warm Dimming and Tunable White (APN-002807)
SPECIALTY LIGHTING
UVC LEDs for Disinfection and Sterilization (APN-002805)
Design Guidelines for SFT Chipsets Assembly (APN-002804)
Soldering and Handling of Surface Mount Devices (APN-001473)
Thermal Management of Big Chip LEDs (APN-001443)
Testing Big Chip LEDs (APN-001843)
Thermal Cross-Talk in Multi-Chip LED Packages (APN-002127)
