COB ARRAYS

STANDARD GEN 6

New generation with high efficacy at typical >152lm/W, general lighting, directional source delivering high lumen efficacy from the largest selection of Light Emitting Surface (LES), operating power range, and color quality

documents WHERE TO BUY

APPLICATIONS

  • Retail/Hospitality/Commercial
  • Track/Spot/Bulb
  • Architectural/Museums/Exhibits
  • Roadway/Parking/Tunnel Lighting
  • High/Low Bay
  • Canopy/Awning/Wall Pack

FEATURES

  • Typical efficacy >152 LPW, 3000K 90CRI, highest reach 184LPW
  • Complete LES and Lumen outputs
  • AccuWhiteTM Color rendering to 97CRI typ.
  • SensusTM and Xtreme SensusTM Pure White
  • UL and IEC qualified
  • Widest range of CCT/CRI combinations

BENEFITS

  • Enhanced efficacy reduces power consumptions
  • Source optimized for beam characteristics and optics selection
  • Sources to achieve highest color rendering and optimum appearance
  • Pure white color rendering with enhanced color saturation
  • Pre-certified to fast-tracked fixture certifications

PRODUCT SELECTOR

Need a help to select product？Lumen Calculator for COB Arrays

Product Image Product Family LES (mm) Substrate Size (mm) Power Range (W) Flux Range @ 3000K 90CRI Links
cxm-4 CXM-4 4.5 13.5 * 13.5 4 ~ 14.5 475 ~ 1330 Datasheet

Ecosystem
cxm-6 CXM-6 6.3 13.5 * 13.5 5 ~ 15 690 ~ 1655 Datasheet

Ecosystem

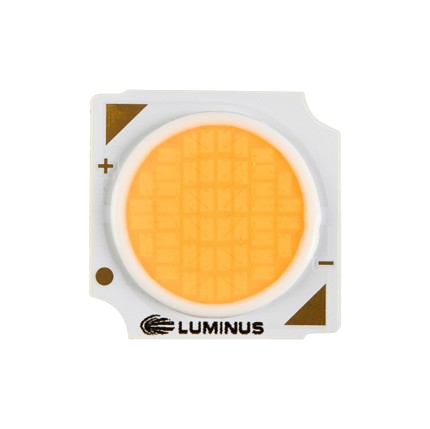

clm-9 CLM-9 9.8 13.5 * 13.5 (TC)
15.0 * 15.0 (TA) 		8.2 ~ 29 1205 ~ 3375 Datasheet

Ecosystem
cxm-9 CXM-9 9.8 13.5 * 13.5 (TC)
15.0 * 15.0 (TA) 		12 ~ 37.4 1710 ~ 4445 Datasheet

Ecosystem

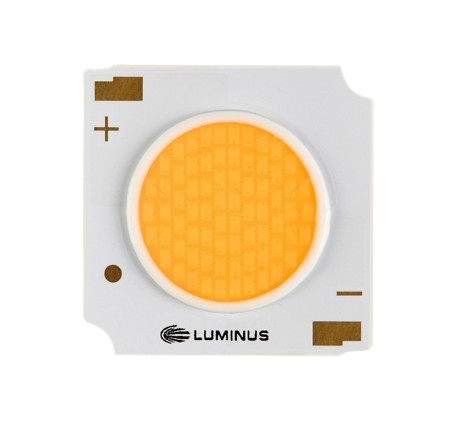

cxm-11 CXM-11 11.6 19.0 * 19.0 (TC)
18.5 * 18.5 (TA) 		14.5 ~ 44.5 2185 ~ 5245 Datasheet

Ecosystem
cim-14 CIM-14 14.5 19.0 * 19.0 14.9 ~ 44.5 2200 ~ 5280 Datasheet

Ecosystem

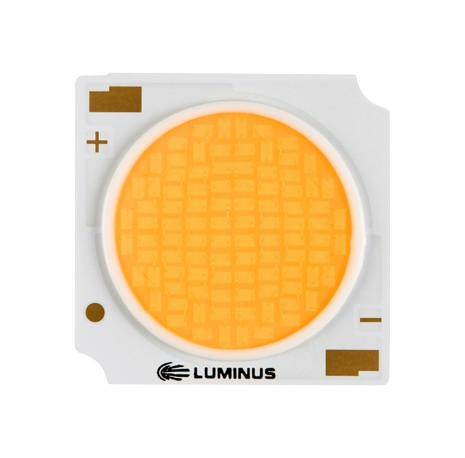

clm-14 CLM-14 14.5 19.0 * 19.0 16.4 ~ 58.2 2480 ~ 6945 Datasheet

Ecosystem

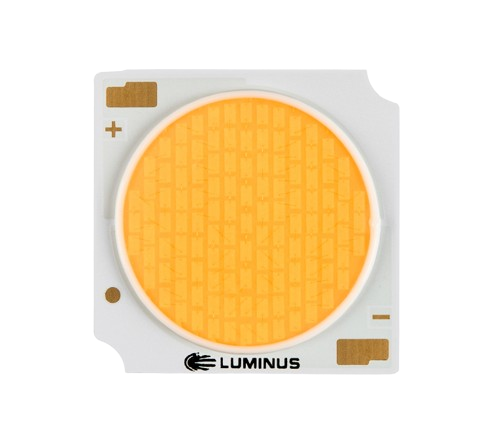

cxm-14 CXM-14 14.5 19.0 * 19.0 (TC)
18.5 * 18.5 (TA) 		24 ~ 67.9 3450 ~ 7935 Datasheet

Ecosystem
cgm-14 CGM-14 14.5 19.0 * 19.0 30 ~ 83.1 4285 ~ 9855 Datasheet

Ecosystem

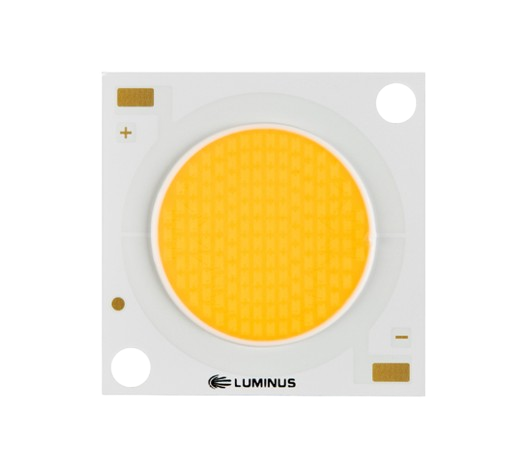

cxm-18 CXM-18 17.5 28.0 * 28.0 26.5 ~ 84 4085 ~ 10620 Datasheet

Ecosystem
cim-22 CIM-22 22.0 28.0 * 28.0 33 ~ 98 5105 ~ 12250 Datasheet

Ecosystem

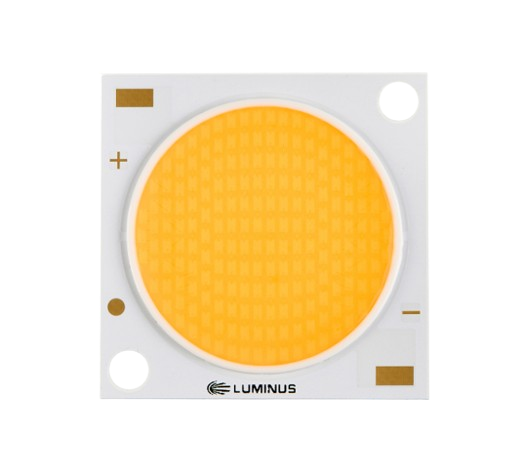

clm-22 CLM-22 22.0 28.0 * 28.0 34.5 ~ 117 5485 ~ 15360 Datasheet

Ecosystem

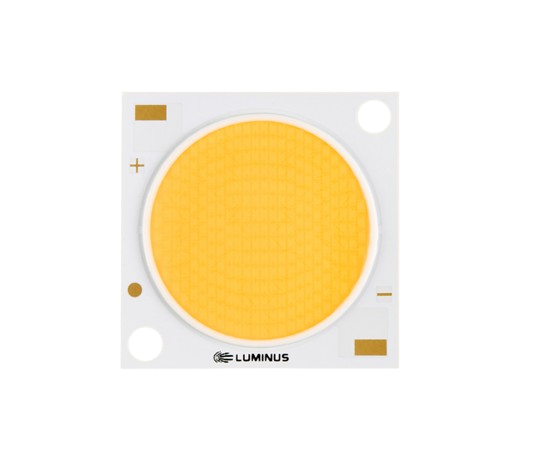

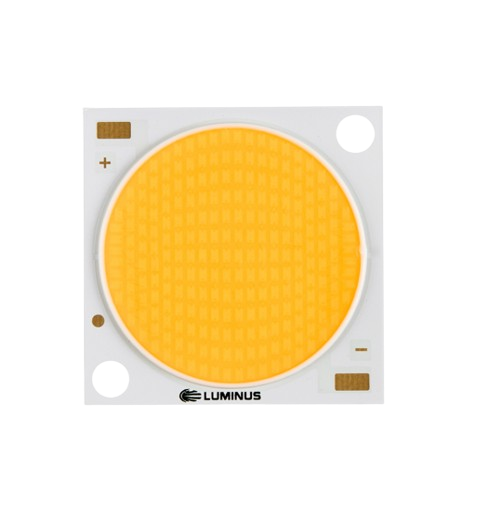

cxm-22 CXM-22 22.0 28.0 * 28.0 52 ~ 177 8100 ~ 21060 Datasheet

Ecosystem
cgm-22 CGM-22 22.0 28.0 * 28.0 81 ~ 195 11940 ~ 24360 Datasheet

Ecosystem
cxm-32 CXM-32 32.8 38.0 * 38.0 120 ~ 310 18720 ~ 39300 Datasheet

Ecosystem

Use the COB Lumen Calculator to pick the right part number for your application

DESIGN FILES

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
CGM-14_Gen6 CGM-14_Gen6_Mech
(279.1 KB) 		CGM-14_Gen6_ASAP
(132.9 MB) 		CGM-14_Gen6_LT
(142 MB) 		CGM-14_Gen6_TP
(136.6 MB) 		CGM-14_Gen6_Zx
(142.2 MB)
CIM-14_Gen6 CIM-14_Gen6_Mech
(198.9 KB) 		CIM-14_Gen6_ASAP
(132.9 MB) 		CIM-14_Gen6_LT
(142 MB) 		CIM-14_Gen6_TP
(136.6 MB) 		CIM-14_Gen6_Zx
(142.3 MB)
CLM-14_Gen6 CLM-14_Gen6_Mech
(232.6 KB) 		CLM-14_Gen6_ASAP
(133.2 MB) 		CLM-14_Gen6_LT
(142.2 MB) 		CLM-14_Gen6_TP
(136.8 MB) 		CLM-14_Gen6_Zx
(142.4 MB)
CXM-11_Gen6 CXM-11_Gen6_Mech
(194.6 KB) 		CXM-11_Gen6_ASAP
(133 MB) 		CXM-11_Gen6_LT
(141.9 MB) 		CXM-11_Gen6_TP
(136.4 MB) 		CXM-11_Gen6_Zx
(142.1 MB)
CXM-14_Gen6 CXM-14_Gen6_Mech
(246 KB) 		CXM-14_Gen6_ASAP
(132.8 MB) 		CXM-14_Gen6_LT
(142.8 MB) 		CXM-14_Gen6_TP
(137 MB) 		CXM-14_Gen6_Zx
(143.1 MB)
CXM-18_Gen6 CXM-18_Gen6_Mech
(292.7 KB) 		CXM-18_Gen6_ASAP
(133.5 MB) 		CXM-18_Gen6_LT
(142.1 MB) 		CXM-18_Gen6_TP
(136.5 MB) 		CXM-18_Gen6_Zx
(142.3 MB)
CXM-22_Gen6 CXM-22_Gen6_Mech
(287.6 KB) 		CXM-22_Gen6_ASAP
(133.7 MB) 		CXM-22_Gen6_LT
(142.4 MB) 		CXM-22_Gen6_TP
(136.7 MB) 		CXM-22_Gen6_Zx
(142.6 MB)
CXM-32_Gen6 CXM-32_Gen6_Mech
(398.8 KB) 		CXM-32_Gen6_ASAP
(134.3 MB) 		CXM-32_Gen6_LT
(143 MB) 		CXM-32_Gen6_TP
(137.2 MB) 		CXM-32_Gen6_Zx
(143.2 MB)
CXM-4_Gen6 CXM-4_Gen6_Mech
(97.5 KB) 		CXM-4_Gen6_ASAP
(132.5 MB) 		CXM-4_Gen6_LT
(141.3 MB) 		CXM-4_Gen6_TP
(136 MB) 		CXM-4_Gen6_Zx
(141.5 MB)
CXM-6_Gen6 CXM-6_Gen6_Mech
(82.3 KB) 		CXM-6_Gen6_ASAP
(133.1 MB) 		CXM-6_Gen6_LT
(142.2 MB) 		CXM-6_Gen6_TP
(136.6 MB) 		CXM-6_Gen6_Zx
(142.4 MB)
CXM-9_Gen6 CXM-9_Gen6_Mech
(130 KB) 		CXM-9_Gen6_ASAP
(132.8 MB) 		CXM-9_Gen6_LT
(142.6 MB) 		CXM-9_Gen6_TP
(137 MB) 		CXM-9_Gen6_Zx
(142.9 MB)

Application Notes

GENERAL LIGHTING
Electrical Stress Damage to LEDs and How to Prevent It (APN-002815)
Design Guidelines and Ecosystems for Luminus COB Arrays (APN-002319)
General Handling and Soldering Notes for Luminus COB Arrays (APN-002320)
Luminus ECOSystem Optical Data Sheet (APN-002531)
Soldering and Handling of Luminus Cube Surface Mount Devices (APN-002577)
Measurement and Design Considerations for Luminus Cube Surface Mount Devices (APN-002576)
Guidelines for Luminus Dynamic COBs - Warm Dimming and Tunable White (APN-002807)
SPECIALTY LIGHTING
UVC LEDs for Disinfection and Sterilization (APN-002805)
Design Guidelines for SFT Chipsets Assembly (APN-002804)
Soldering and Handling of Surface Mount Devices (APN-001473)
Thermal Management of Big Chip LEDs (APN-001443)
Testing Big Chip LEDs (APN-001843)
Thermal Cross-Talk in Multi-Chip LED Packages (APN-002127)

Documents

Related Documents for Download
AccuWhite COB Product Brief
Luminus 5-Year Limited Warranty
